Driver Power Window Switch

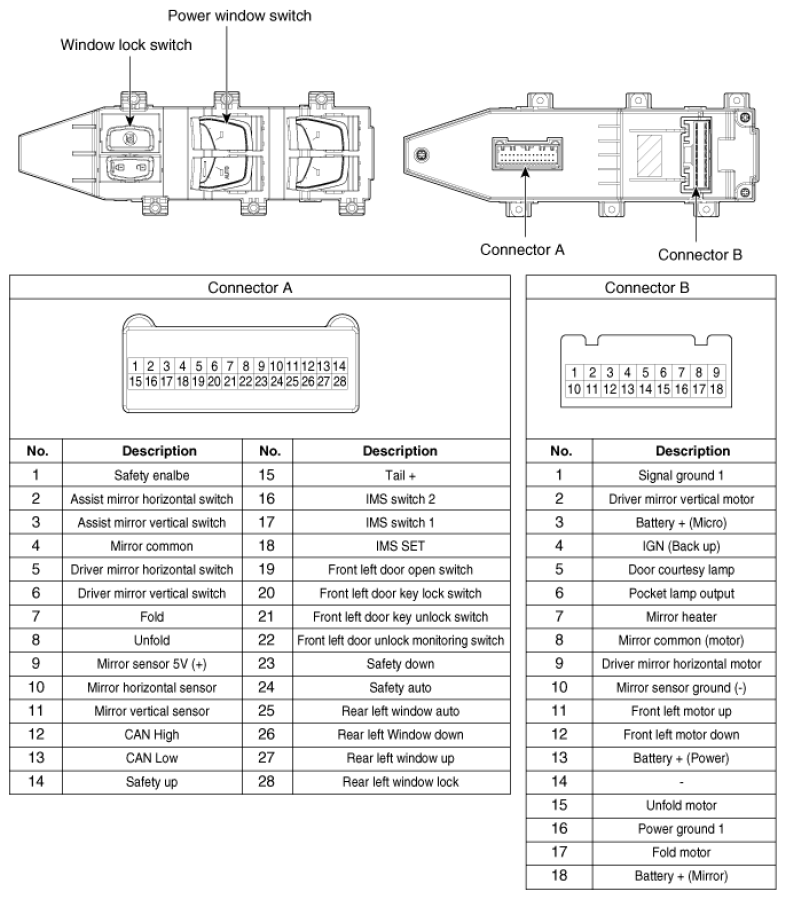

Fig 1: Identifying Driver Power Window Switch And Connector
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
