Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    Refer to FRONT DOOR TRIM .

  3. Remove the power window bezel assembly (A) after loosening the mounting screws (12EA).
    Fig 1: Identifying Power Window Bezel Assembly And Mounting Screws
    G09268732Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the power window switch assembly (A) after loosening the mounting screws (6EA).

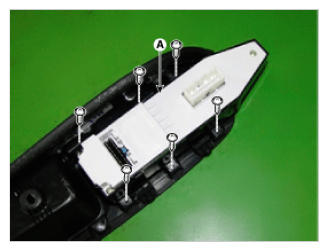

    Fig 2: Identifying Power Window Switch Assembly And Mounting Screws
    G09268733Courtesy of HYUNDAI MOTOR AMERICA
