Signal Waveform & Data

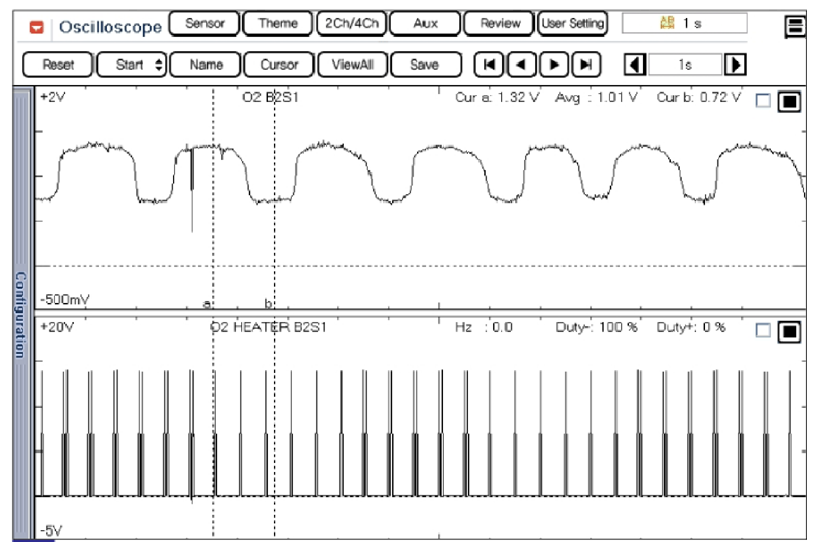

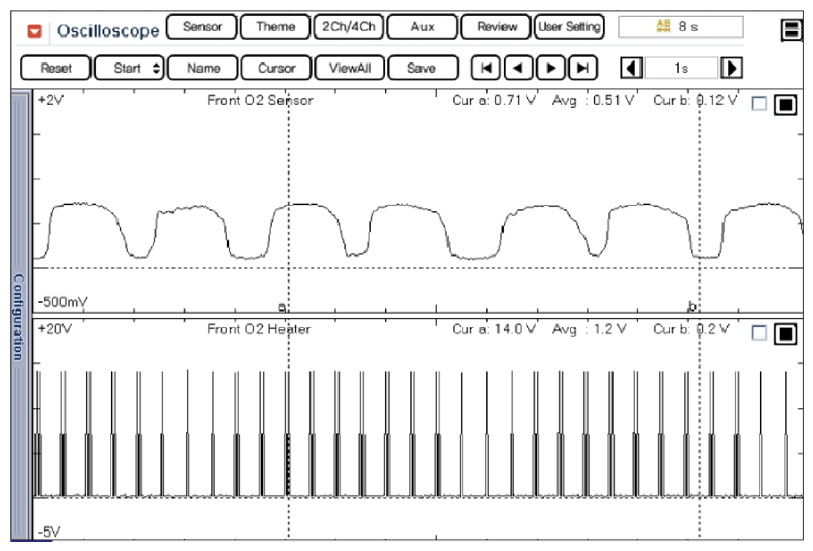

Fig 1: Display - Signal Waveforms Of Front HO2S (Upper) And Heater (Lower) At Idle - Chassis Ground Used

Courtesy of HYUNDAI MOTOR AMERICA

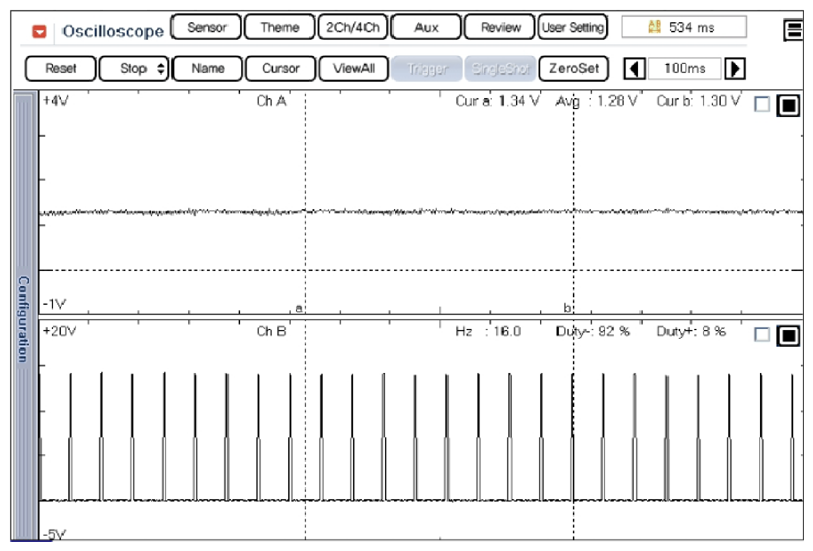

Fig 2: Display - Signal Waveforms Of Front HO2S (Upper) And Heater (Lower) At Idle - Sensor Ground Used

Courtesy of HYUNDAI MOTOR AMERICA

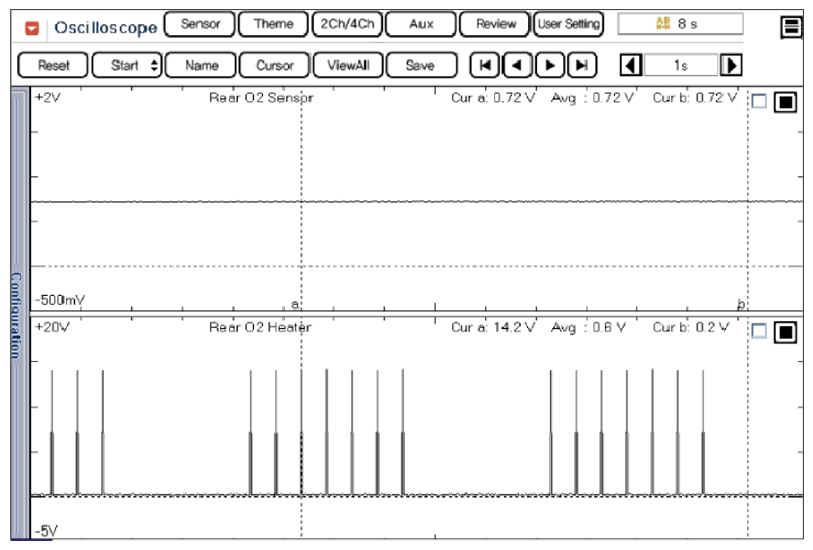

Fig 3: Display - Signal Waveforms Of Rear HO2S (Upper) And Heater (Lower) At Idle - Chassis Ground Used

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Display - Signal Waveforms Of Rear HO2S (Upper) And Heater (Lower) At Idle - Sensor Ground Used

Courtesy of HYUNDAI MOTOR AMERICA

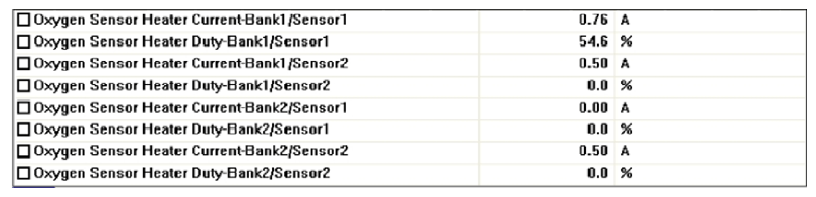

Fig 5: Display - Data Of HO2S Heaters At Open Condition In HO2S (B2S1) Circuit

Courtesy of HYUNDAI MOTOR AMERICA

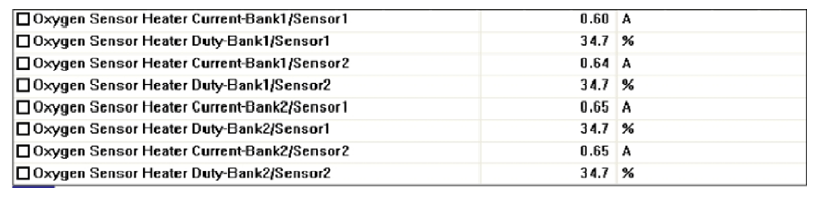

Fig 6: Display - Normal Data Of HO2S Heaters At Idle

Courtesy of HYUNDAI MOTOR AMERICA

The output voltage of front HO2S changes continuously according to air/fuel ratio. The PCM controls fuel amount based on this value. Preheating is necessary for HO2S normal operation. A heater unit is installed in each HO2S. The PCM can control air/fuel ratio with the output signal of HO2S simultaneous with engine run by reducing preheating time. The HO2S power source is the engine control relay. PCM operates heater by ground control.
