Signal Waveform & Data

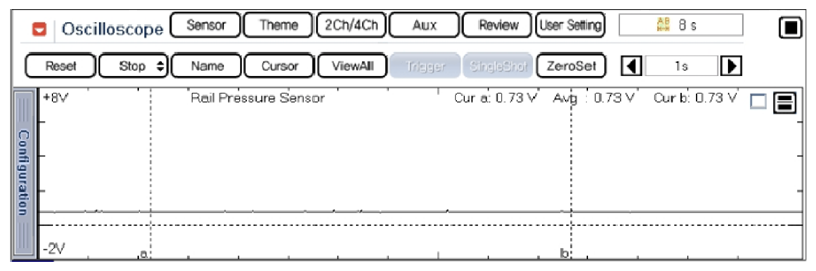

Fig 1: Display - Normal Waveform Of Rail Pressure Sensor At Idle
G09273080Courtesy of HYUNDAI MOTOR AMERICA

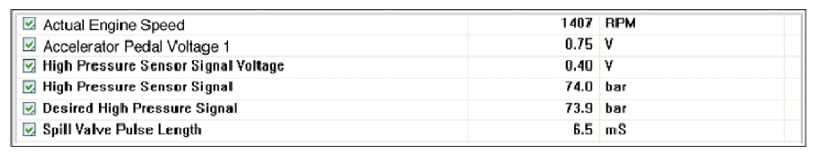

Fig 2: Display - Fuel Rail Pressure Current Data
G09273081Courtesy of HYUNDAI MOTOR AMERICA

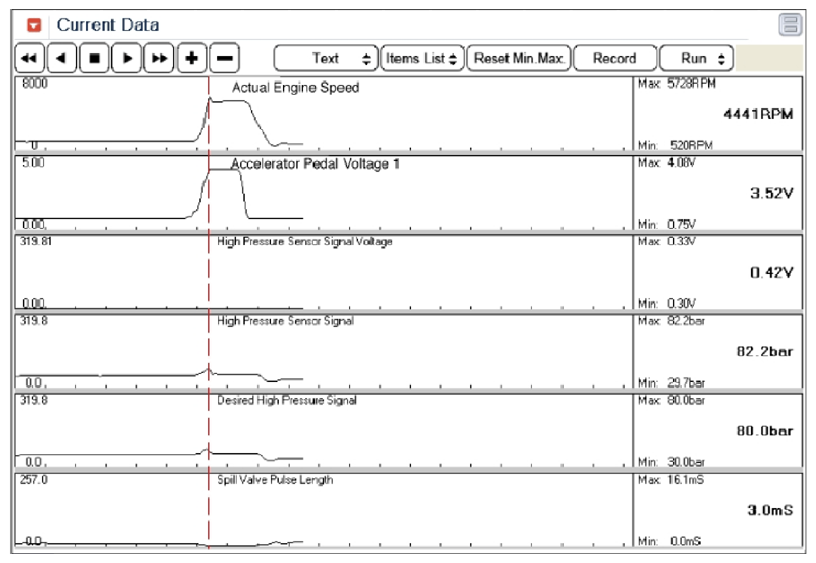

Fig 3: Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G09273082Courtesy of HYUNDAI MOTOR AMERICA
