Components Location

WARNING: This page is about a different variant/trim than selected.

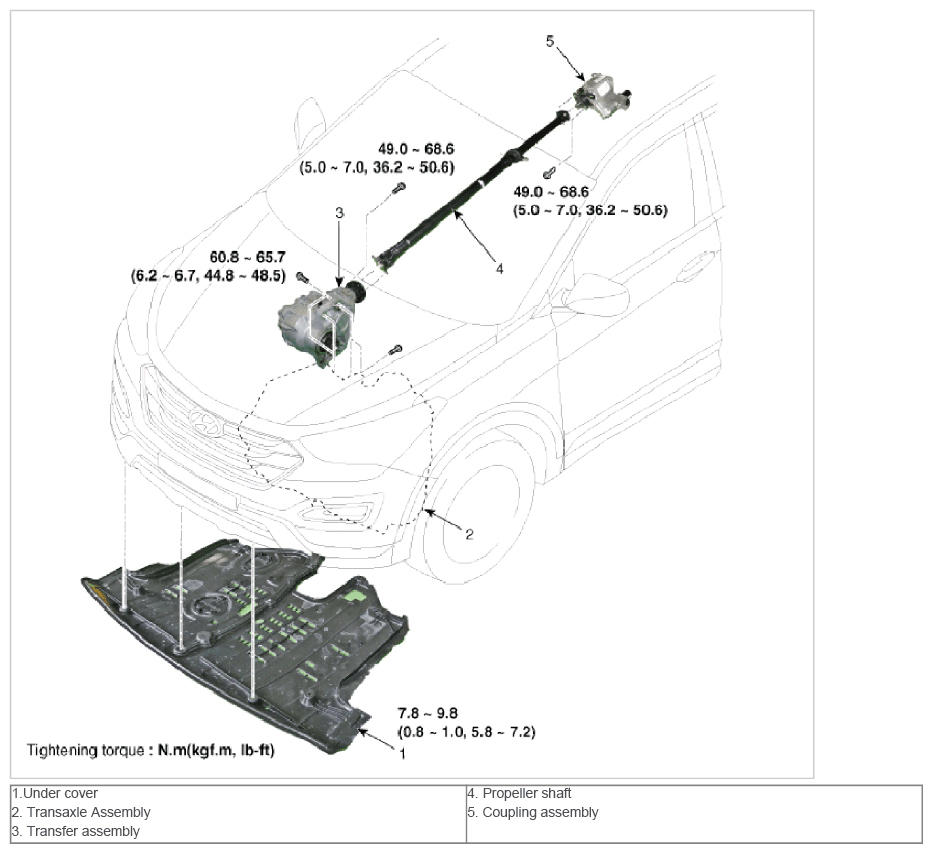

Fig 1: Under Cover, Transaxle Assembly, Transfer Assembly, Propeller Shaft, Coupling Assembly And Mounting Bolt With Torque Specifications
G09267669Courtesy of HYUNDAI MOTOR AMERICA
