Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the following items;
1. Sub frame assembly.
  (Refer to "SUB FRAME ")
2. Front muffler.
  G 3.3 GDI (Refer to "FRONT MUFFLER ")
3. Drive shaft assembly.
  (Refer to "FRONT DRIVESHAFT ")
Remove the propeller shaft (A).
Tightening torque:

49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)

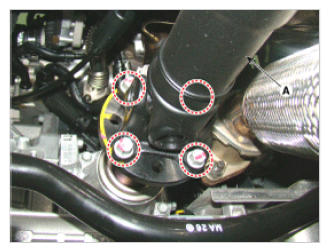

Fig 1: Identifying Propeller Shaft And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the transfer upper & lower mounting bolts. (transfer side → transaxle side)

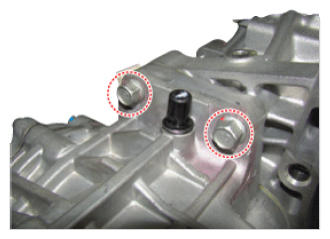

Fig 2: Identifying Transfer Upper Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

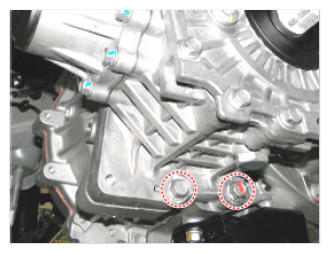

Fig 3: Identifying Transfer Lower Mounting Bolts (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the transfer lower mounting blot. (transaxle side → transfer side)

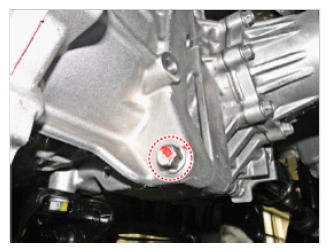

Fig 4: Identifying Transfer Lower Mounting Blot (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
