Front Fog Lamp RH Connector End View (E78)

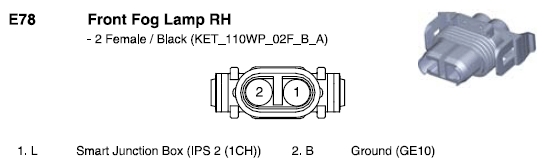

Fig 1: Front Fog Lamp RH Connector End View (E78)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
