Sonata Hybrid Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (HEV)
>>
Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Wave Form
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wave Form

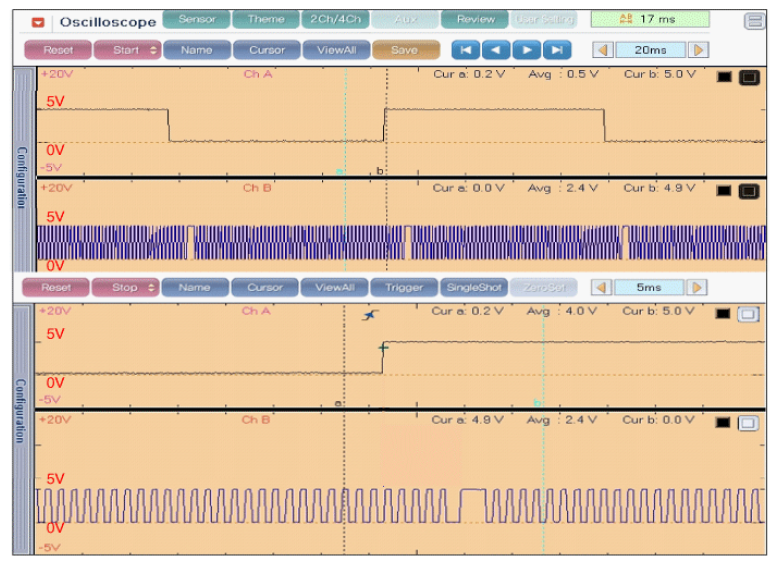

Fig 1: Display Camshaft Position Sensor (CMPS) Waveform
Courtesy of HYUNDAI MOTOR CO.
