Signal Code Table
INHIBITOR SWITCH SIGNAL CODE TABLE REFERENCE CHART
| |
P |
P-R |
R |
R-N |
N |
N-D |
D |
| Signal 1 |
12V |
12V |
0 |
0 |
0 |
0 |
0 |
| Signal 2 |
0 |
12V |
12V |
12V |
0 |
0 |
0 |
| Signal 3 |
0 |
0 |
0 |
12V |
12V |
12V |
0 |
| Signal 4 |
0 |
0 |
0 |
0 |
0 |
12V |
12V |
Courtesy of HYUNDAI MOTOR CO.

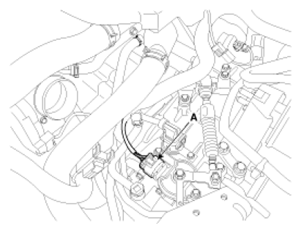

[Connection Information]
Courtesy of HYUNDAI MOTOR CO.
