Repair Procedures: Removal

NOTE: When replacing the TCM, the vehicle equipped with immobilizer must be performed the procedure as below.

[In the case of installing used TCM]

Perform "Neutral mode" procedure with GDS. (Refer to TEACHING MODE PROCEDURE DESCRIPTION (STEP BY STEP) )
Insert the key and turn it to the IGN ON and OFF position.

Then the TCM key register process is completed automatically.

[In the case of installing new TCM]

Then the TCM key register process is completed automatically.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the TCM Connector (A).

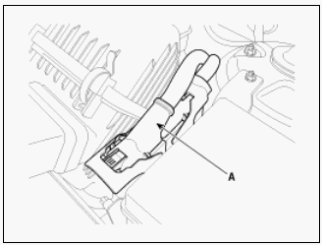

Fig 1: Identifying TCM Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the air cleaner assembly.
(Refer to "INTAKE AND EXHAUST SYSTEM " )
Remove the mounting bolts (A)/nut (B), and then remove the TCM (C).

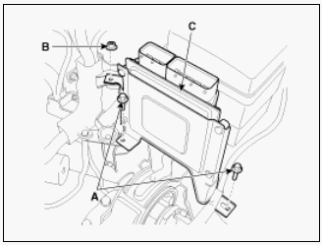

Fig 2: Identifying TCM, Mounting Bolts And Nuts
Courtesy of HYUNDAI MOTOR CO.

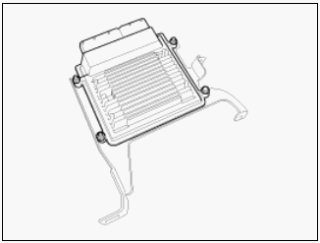

Fig 3: Identifying TCM
Courtesy of HYUNDAI MOTOR CO.
