Engine Control Module





ECM Terminal And Input/Output signal

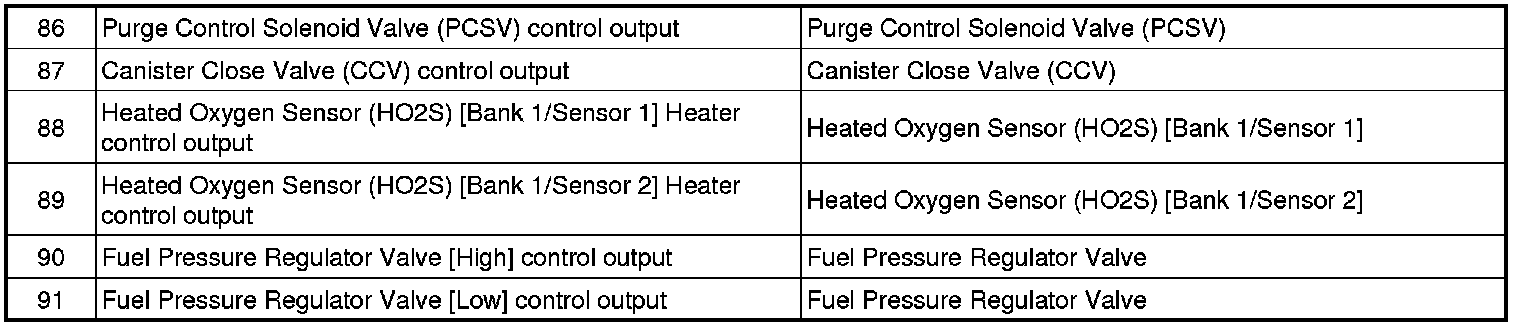

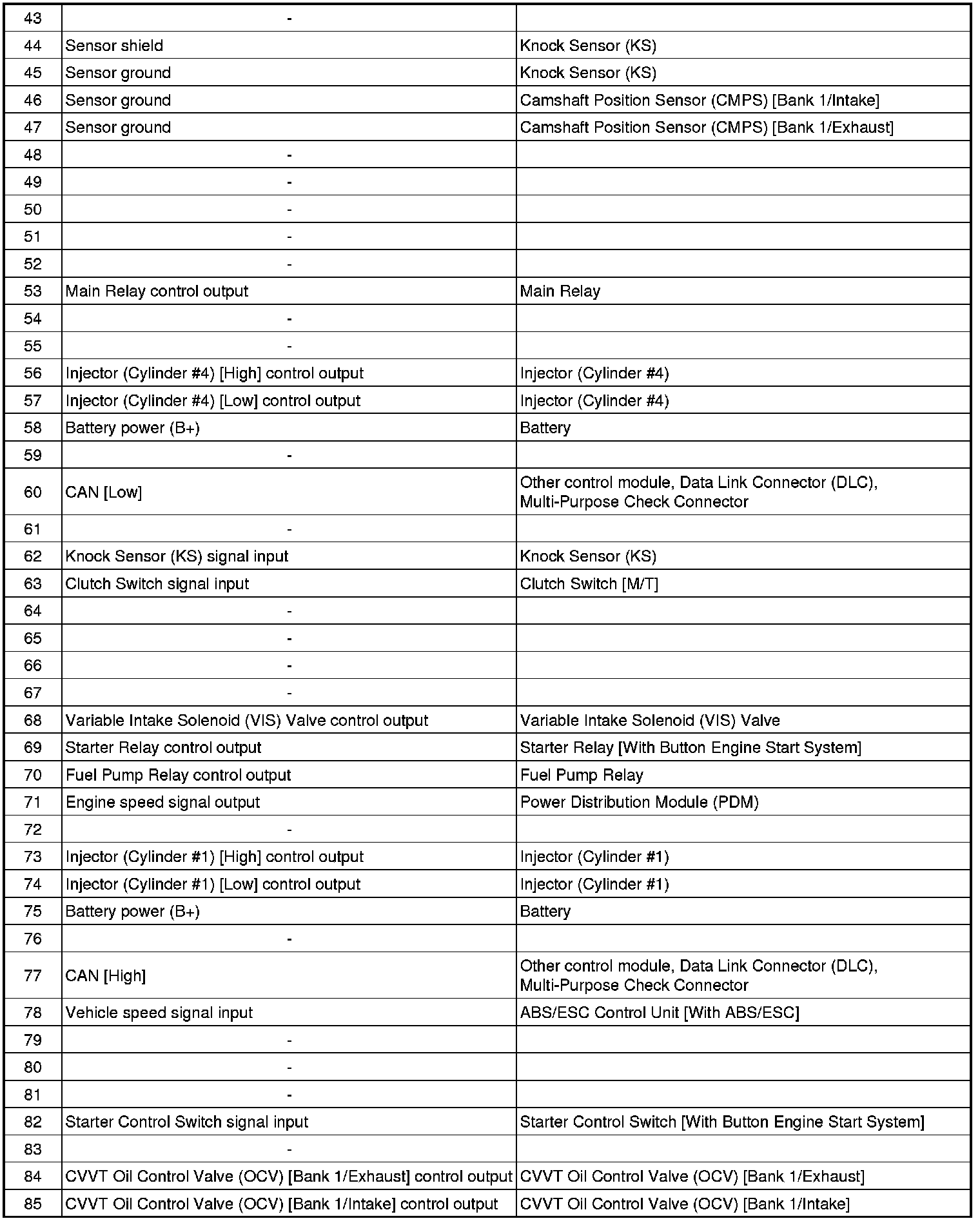

ECM Terminal Function

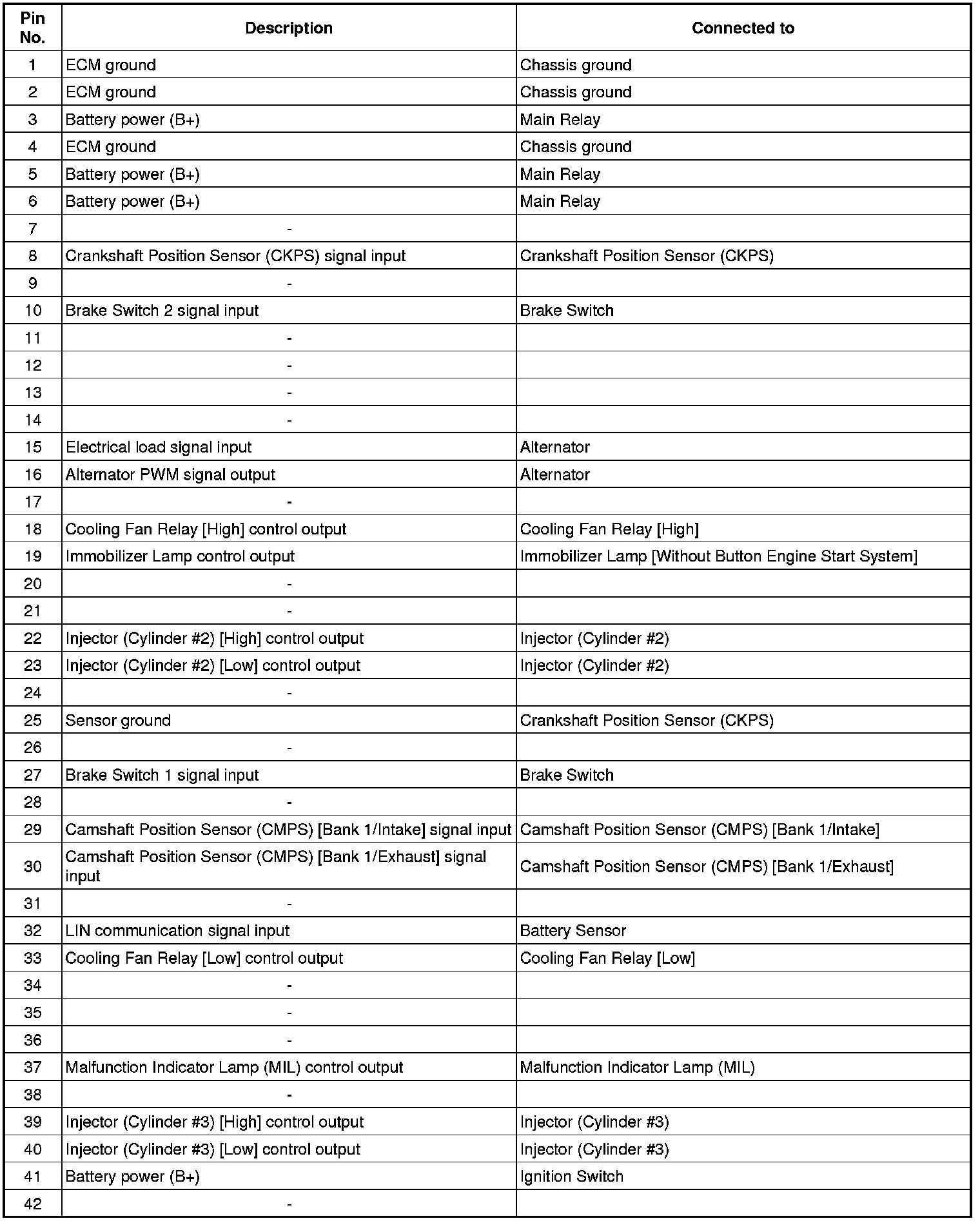

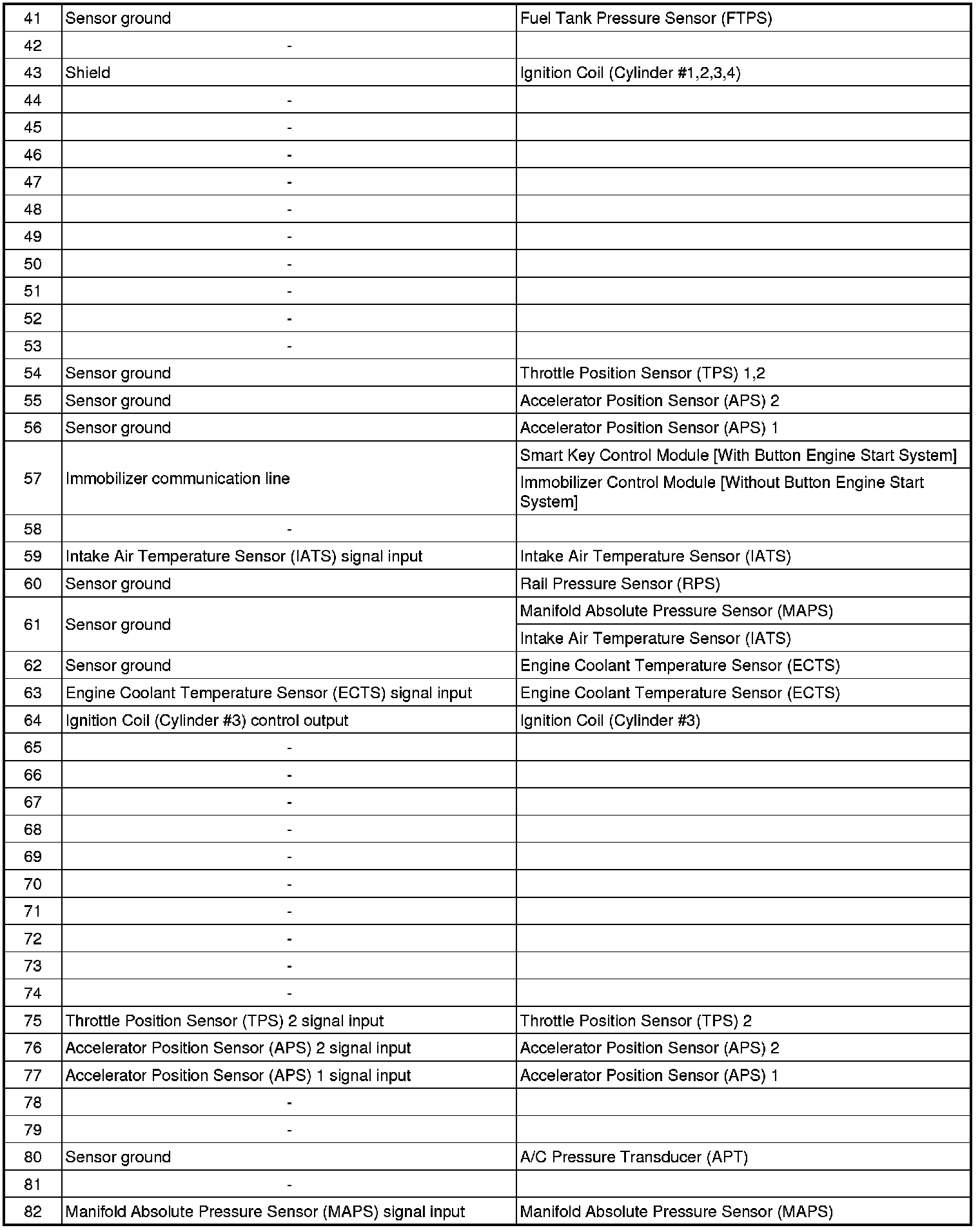

Connector [CHG-AG]

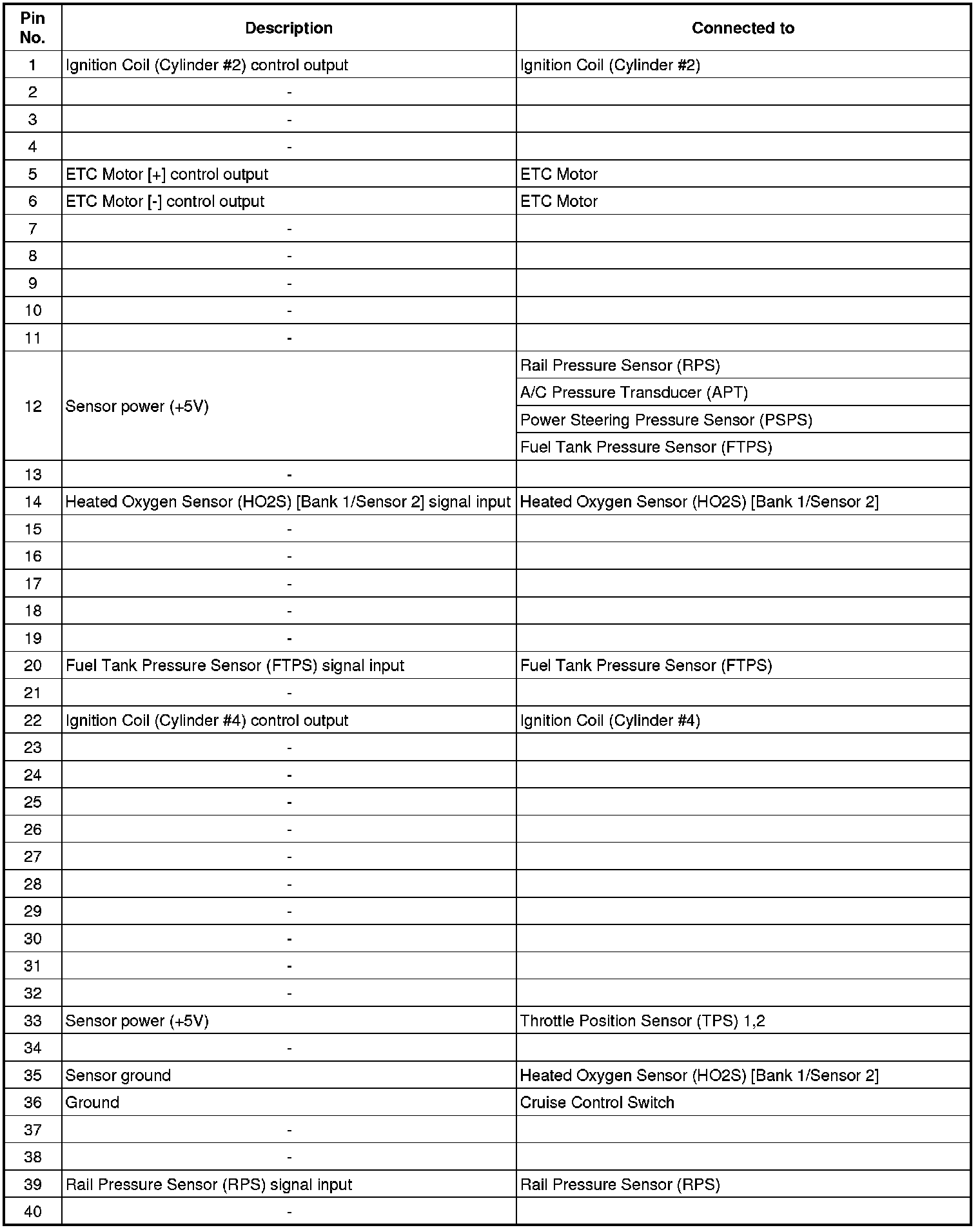

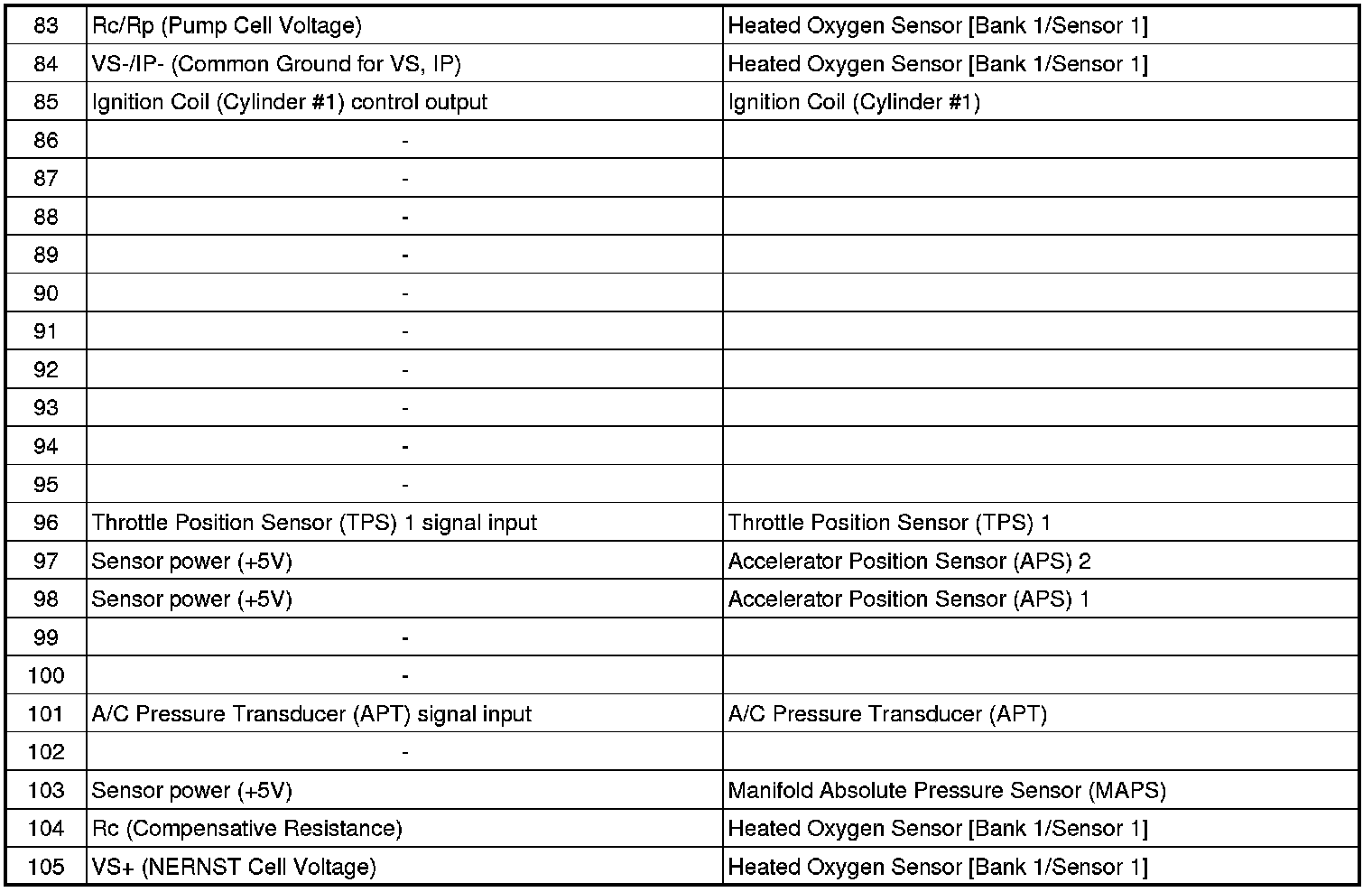

Connector [CHG-BG]

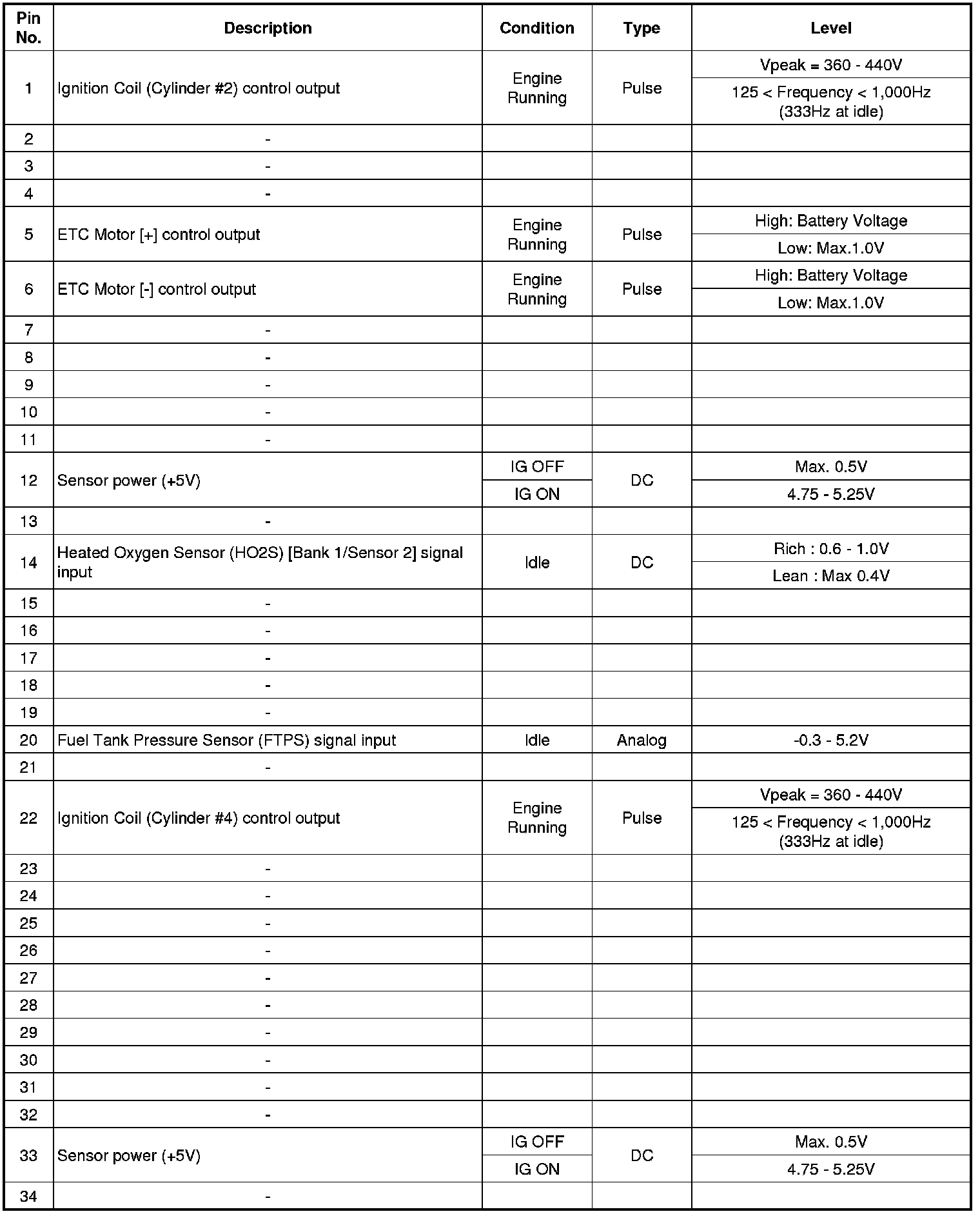

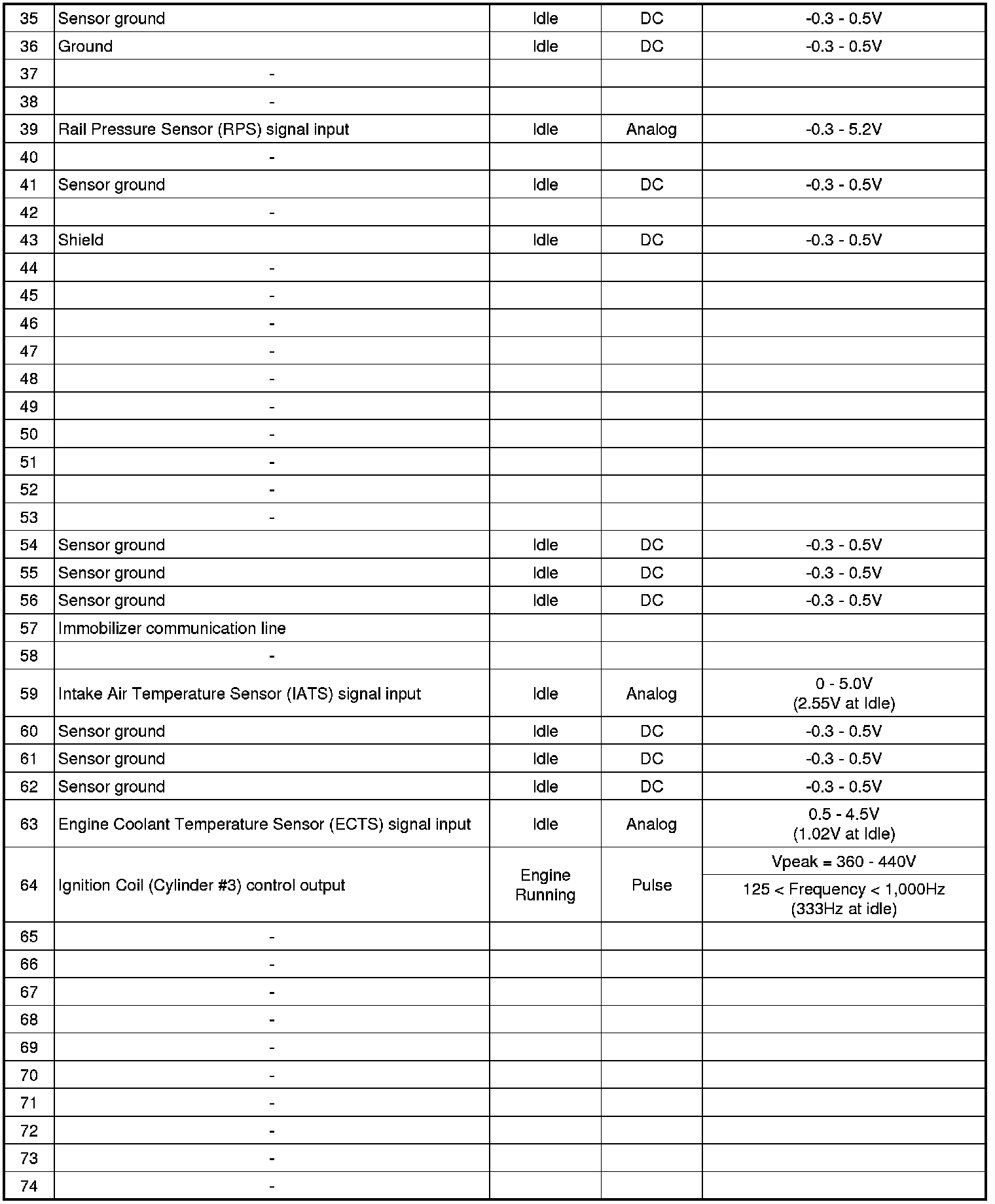

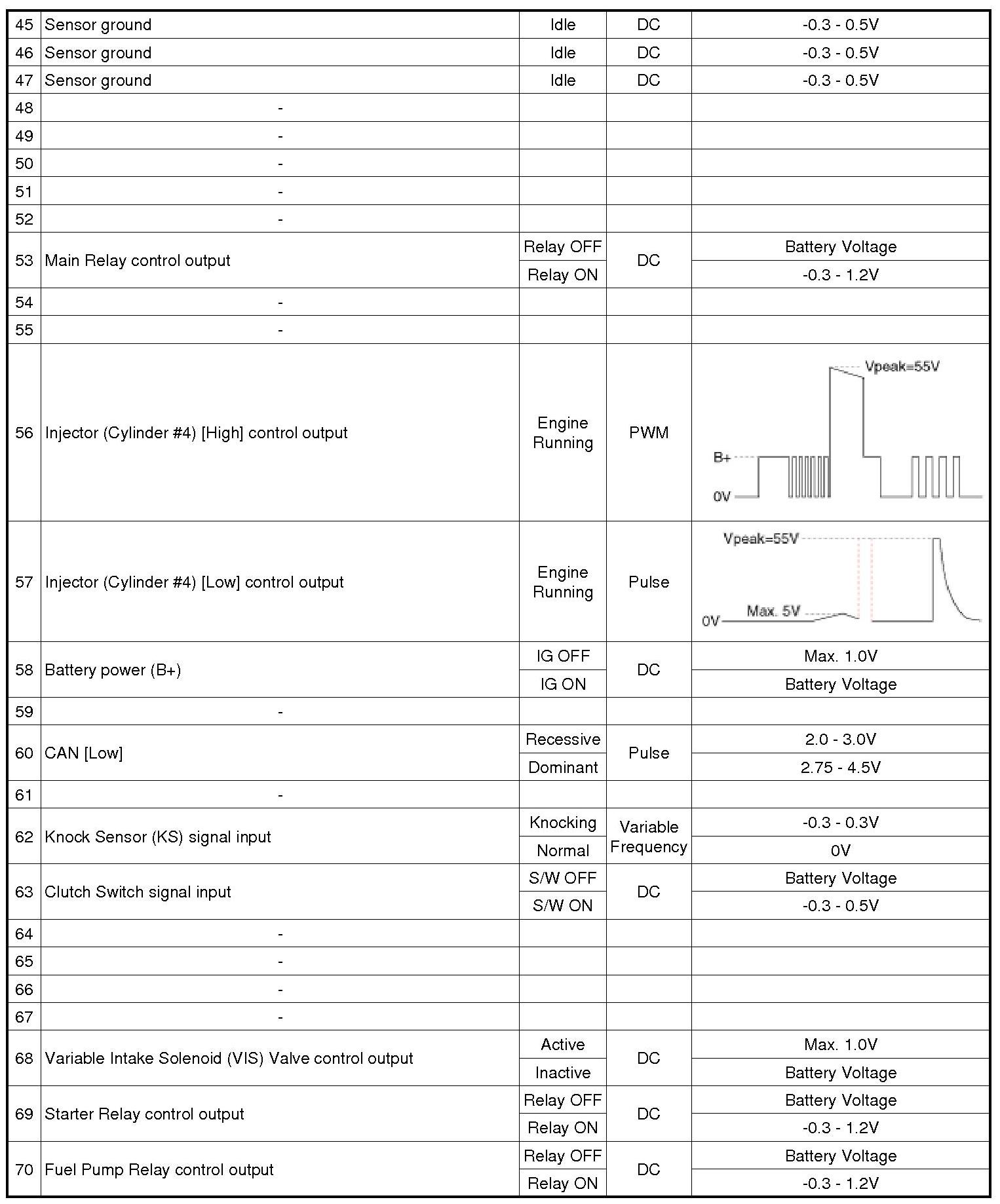

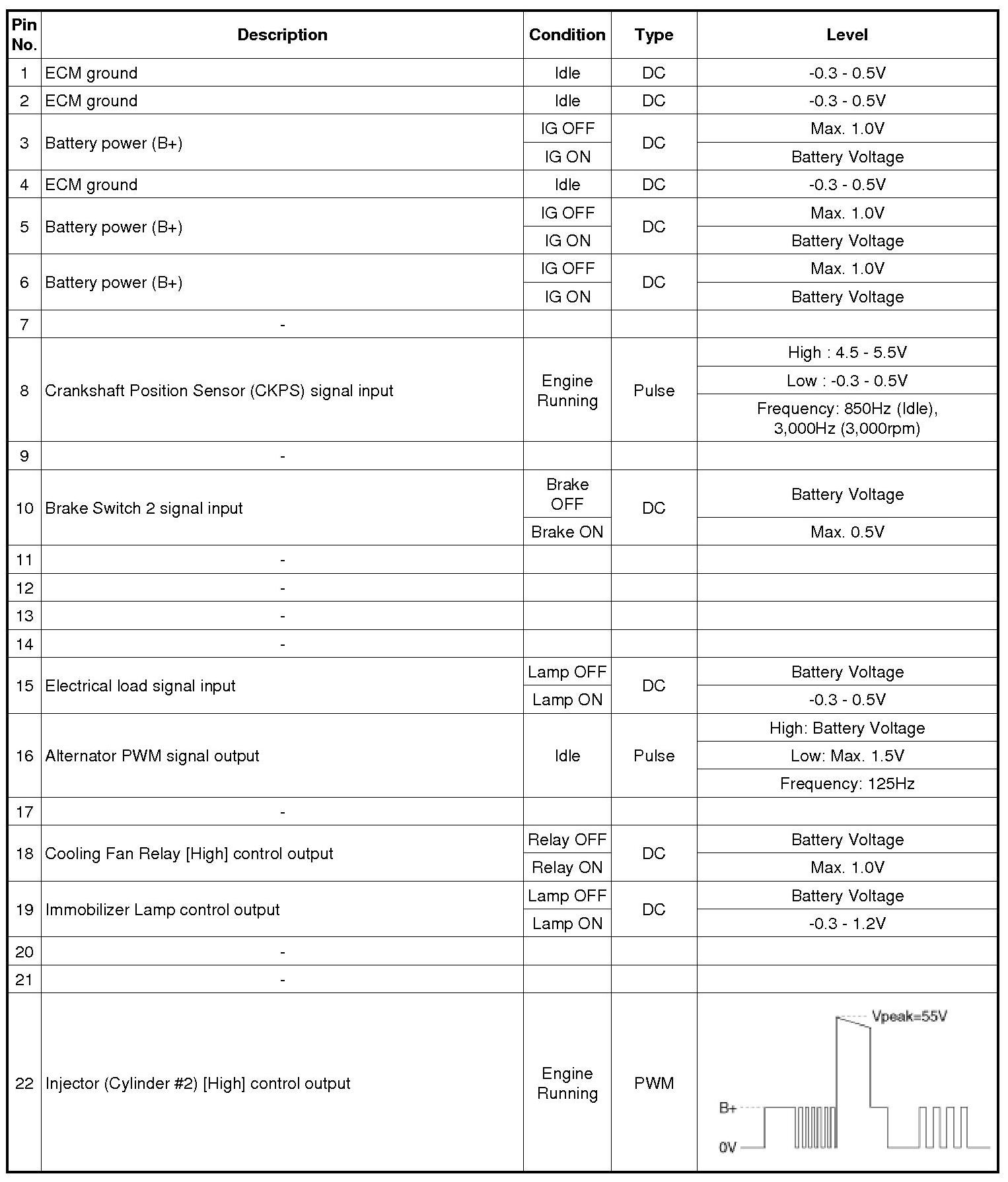

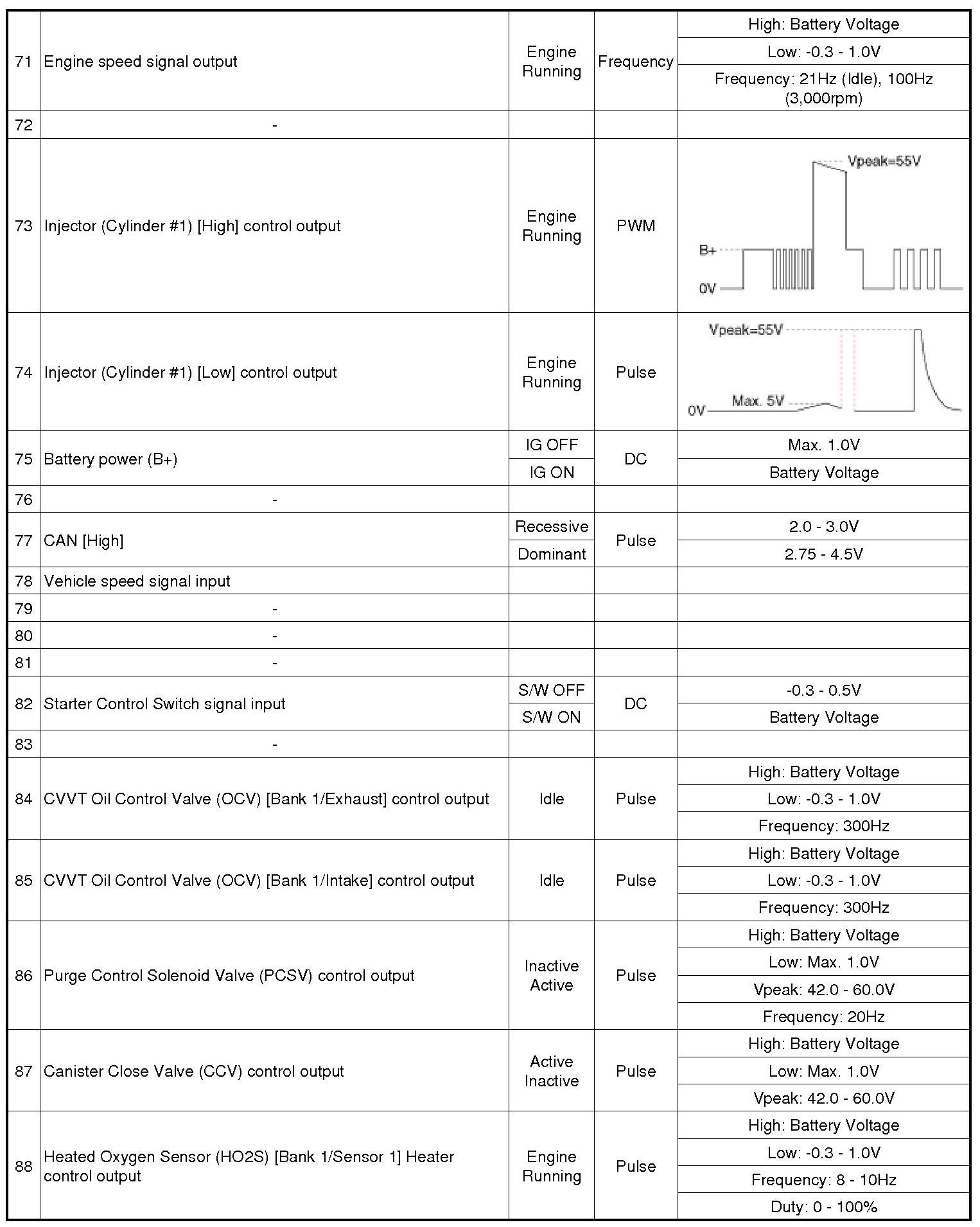

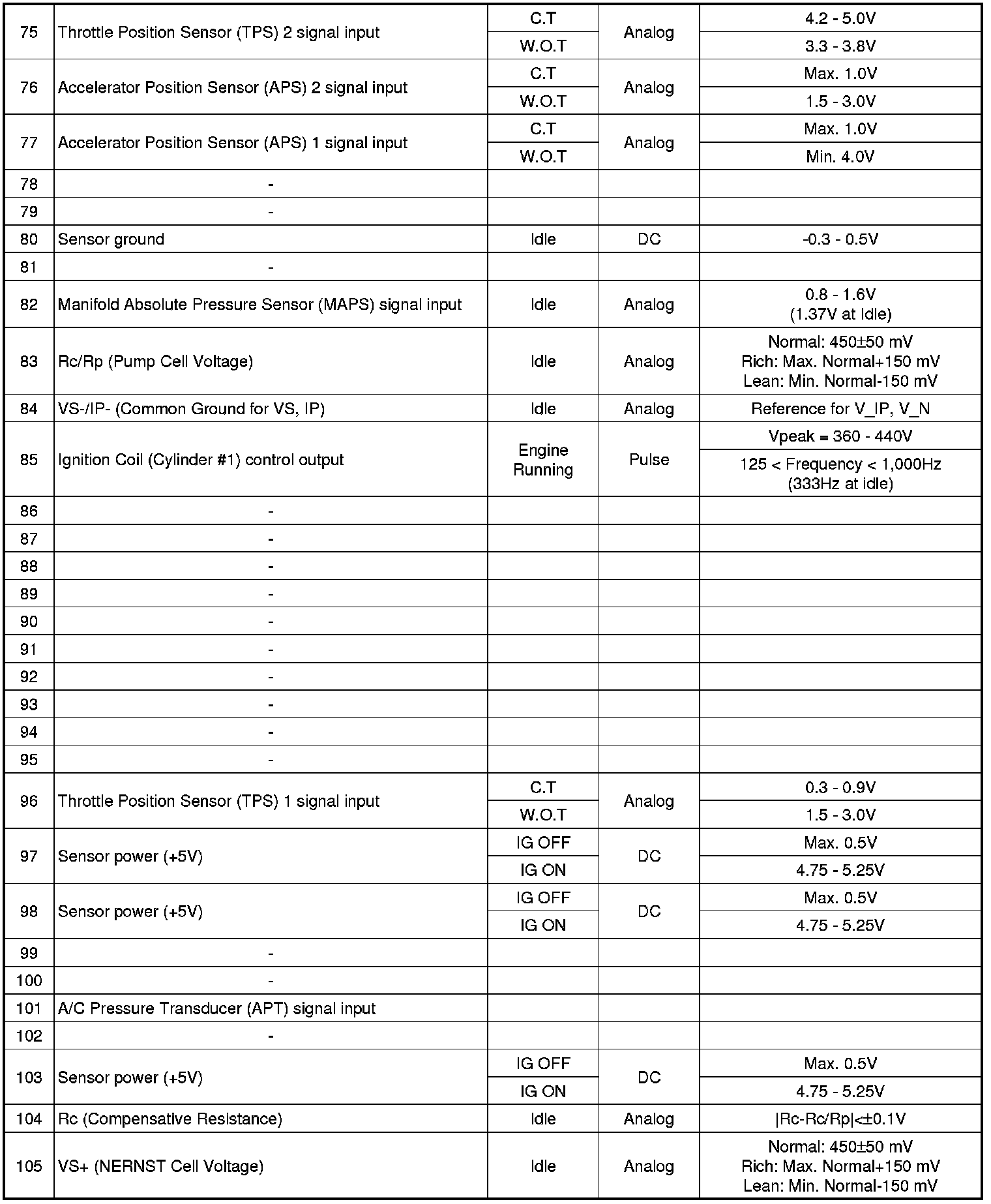

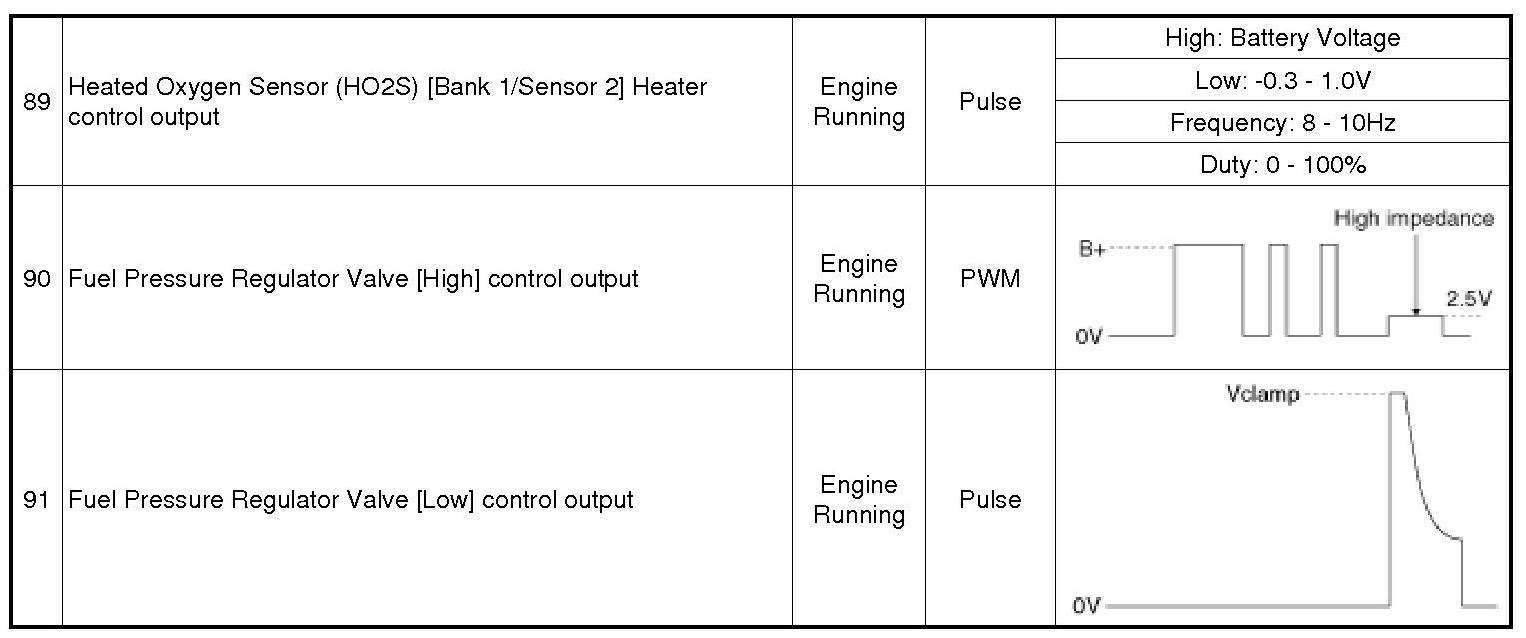

ECM Terminal Input/ Output signal

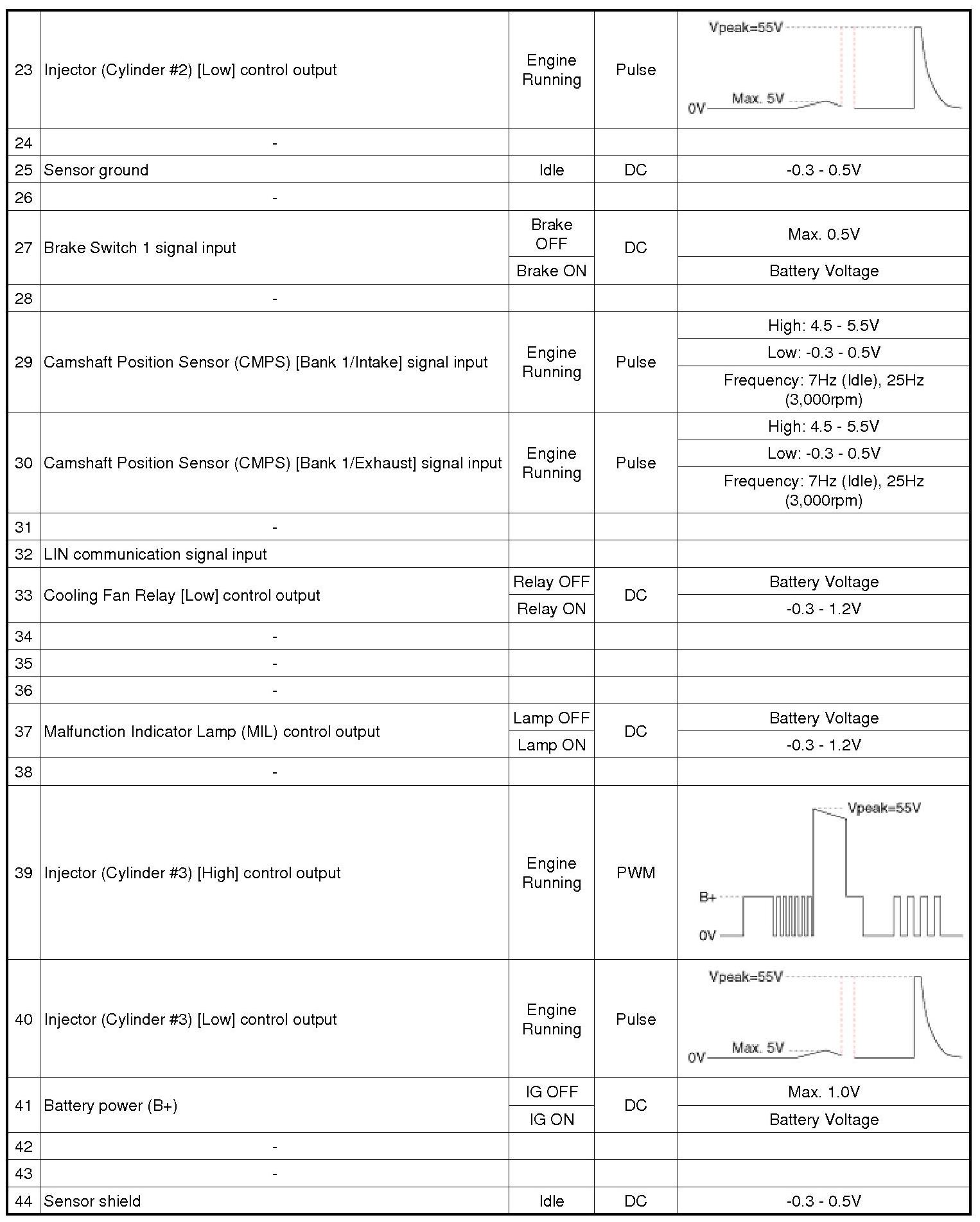

Connector [CHG-AG]













Connector [CHG-BG]






















Circuit Diagram
