Signal Circuit Inspection

Check for Short to Ground in Signal Circuit
1. Ignition OFF.
2. Disconnect VCMA harness connector.
3. Measure resistance between signal terminal and ground terminal of VCMA harness connector.
  Specification: Infinite

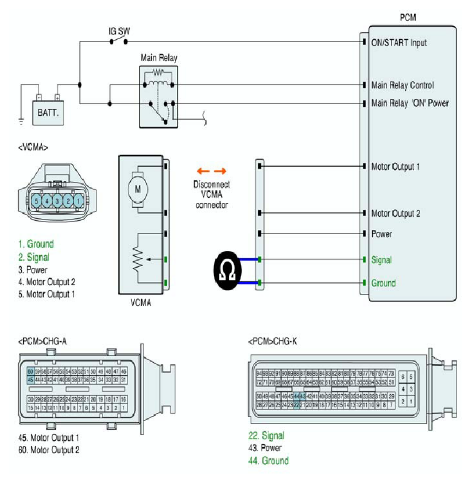

  Fig 1: Measuring Resistance Between Signal Terminal And Ground Terminal Of VCMA Harness Connector
  Courtesy of HYUNDAI MOTOR CO.
4. Is resistance within specification?
  YES
  - Go to next procedure.
  NO
  - Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR .
