SRS Control Module Connector End View (M02-A)

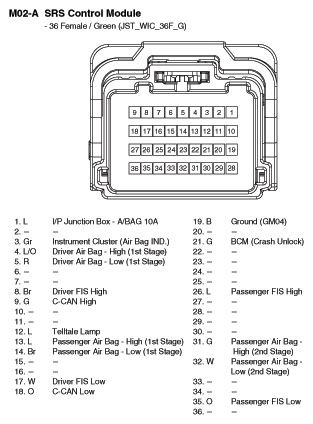

Fig 1: SRS Control Module Connector End View (M02-A)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
