Driver Front Impact Sensor Connector End View (E01)

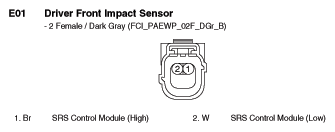

Fig 1: Driver Front Impact Sensor Connector End View (E01)
G10728339Courtesy of HYUNDAI MOTOR AMERICA
