Multifunction Switch Connector End View (Remote Control) (M20-R)

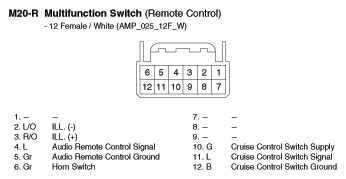

Fig 1: Multifunction Switch Connector End View (Remote Control) (M20-R)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
