Buzzer Control

1. Buzzer sound specification

   Priority	Name	Cycle
   1	Diagnostic sound	Continuous Sound
   2	Seat Belt Warning	1s / Reductive
   3	Key Operated Warning	0.6s / Reductive
   4	Overspeed Warning	1s / Reductive
   5	Parking Brake Warning	0.6s / Reductive
   6	Key Teaching Sound (Non SMK Option)	0.6s / Reductive
   7	ESCL Not Locked Warning	0.6s / Reductive
   8	ESCL Not Unlocked Warning	0.6s / Reductive
   9	Vehicle not P warning	0.6s / Reductive
   10	ID Out Warning	Continuous Sound
   11	SSB Button Warning	0.6s / Reductive
   12	Rheostat Detent Warning	0.4s / continuous

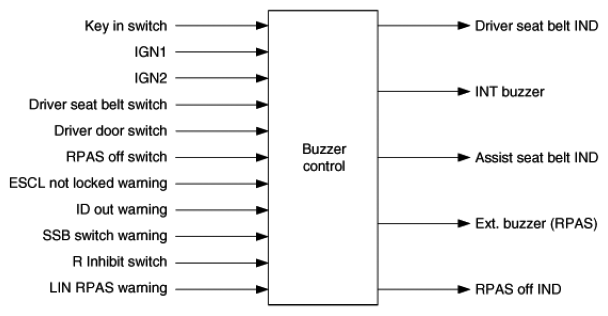

2. Buzzer output to estimate BCM INT Buzzer in cluster, and data transmission.

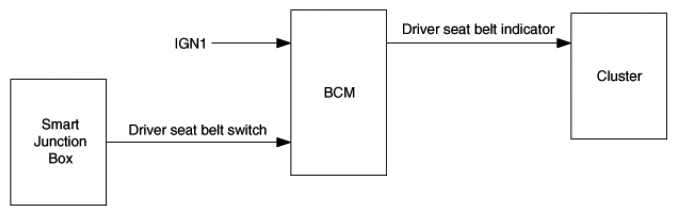

Fig 2: BCM Communication Diagram - Seat Belt Reminder (Driver Seat)

Courtesy of HYUNDAI MOTOR CO.

1. From IGN1 switch ON, Warning lamp for 1 sec (DUTY 50%) and Chime buzzer for 6 time every 1sec. (in case of S/BELT unfastened state) But, within 6 sec in the S/BELT fastened, the Chime buzzer output is stop, and Warning lamp is the remaining time.
2. Lamp and Chime buzzer become output stop when IGN1 is turned OFF within 6 sec-output.
3. If vehicle speed over 10 Km/h, Warning lamp and Chime buzzer are work for 1 time when Seat belt unfastened after IGN ON.
4. If vehicle speed below 5 Km/h or IGN OFF or seat belt fastened, pattern is stop when pattern is running.
5. Seat belt fastened→unfastened when IGN1=ON state: if vehicle speed over 10 Km/h, 1 time output. And if vehicle speed 5~10 Km/h, Warning lamp for 1s (DUTY 50%) and Chime buzzer for 6 every 1s. If vehicle speed less than 5 Km/h, Warning lamp for 6 every 1s (DUTY 50%)

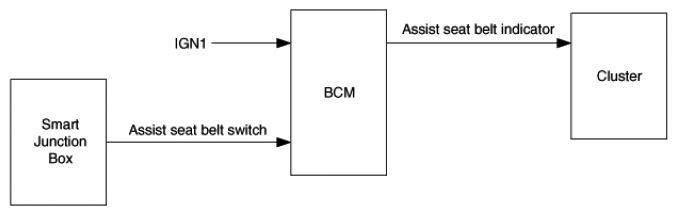

Fig 3: BCM Communication Diagram - Seat Belt Reminder (Assist Seat)

Courtesy of HYUNDAI MOTOR CO.

1. Warning lamp lights continuously every 1sec (DUTY 50%) for 6 sec when IGN is turned ON under unfastened seat belt.
2. Warning lamp is turned OFF when IGN is turned OFF within in time.
3. When IGN is ON under unfastened seat belt, the warning lamp lights. The lamp continues to light for remaining time of 6 sec when seat belt is fastened within 6 sec. The lamp is OFF if seat belt is fastened after 6 sec.
4. When IGN is ON and vehicle speed becomes 10 Km or more and unfastened seat belt, warning lights ON continuously.
5. Under the (4) state, warning lamp is stopped when seat belt is unfastened or vehicle speed becomes under 5 Km/h or IGN is turned OFF.

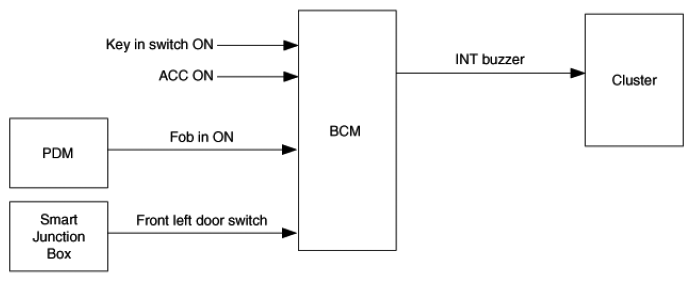

Fig 4: BCM Communication Diagram - Key Operated Warning

Courtesy of HYUNDAI MOTOR CO.

1. INT buzzer every 0.6 sec when Driver door switch is ON under key in ON.
2. If key in= OFF or driver door switch=close, buzzer output is OFF.
3. If IGN1= ON, output is OFF.

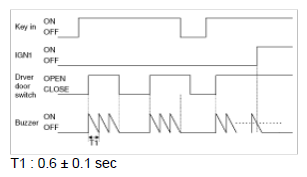

   Fig 5: Driver Door Switch Blinking Pattern

   Courtesy of HYUNDAI MOTOR CO.

   T1: 0.6 ± 0.1 sec

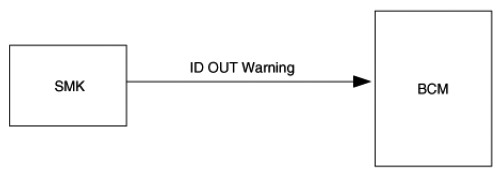

Fig 6: BCM Communication Diagram - ID OUT Warning (SMK)

Courtesy of HYUNDAI MOTOR CO.

1. If ID OUT warning (CAN)= ON, warning buzzer output for the time.
2. Warning buzzer output= STOP, when receive OFF signal.
   Fig 7: ID OUT Warning Blinking Pattern

   Courtesy of HYUNDAI MOTOR CO.

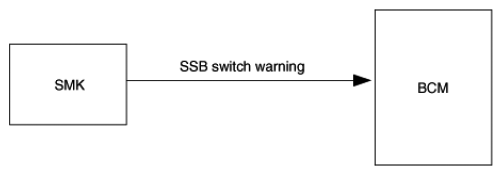

Fig 8: BCM Communication Diagram - SSB Switch Warning (SMK)

Courtesy of HYUNDAI MOTOR CO.

1. If SSB warning (CAN)= ON, warning buzzer output for the time.
2. Warning buzzer output= STOP, when receive OFF signal.

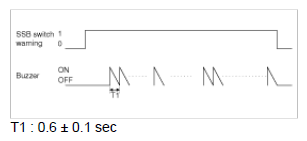

   Fig 9: SSB Switch Warning Blinking Pattern

   Courtesy of HYUNDAI MOTOR CO.

   T1: 0.6 ± 0.1 sec

If vehicle speed is 5 Km/h or above and Parking brake switch=ON, Buzzer is alarming at T2 cycle.

Fig 10: Parking Start Warning Blinking Pattern

Courtesy of HYUNDAI MOTOR CO.

When key teaching by code saving unit or GDS (K-LINE), outputs 0.6s (800 Hz) diminution sounds once.

1. When vehicle NOT P warning (CAN) signal= ON, warning buzzer output for the time.
2. Warning buzzer output= STOP, when receive OFF signal.

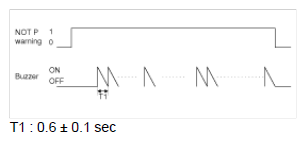

   Fig 11: Vehicle NOT P Warning (SMK) Blinking Pattern

   Courtesy of HYUNDAI MOTOR CO.

   T1: 0.6 ± 0.1 sec
