Rear Seat Heater Relay Control

  1. Rear left seat heater relay is ON for T1 if IGN=ON & Rear left seat heater switch=ON.

    Rear left seat heater relay is OFF if IGN=OFF & Rear left seat heater switch=ON (again) within T1.

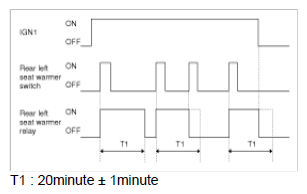

    Fig 1: Rear Left Seat Heater Relay Blinking Pattern
    G06873627Courtesy of HYUNDAI MOTOR CO.

    T1: 20 minute ± 1 minute

  2. Rear right seat heater relay is ON for T1 if IGN=ON & Rear right seat heater switch=ON.

    Rear right seat heater relay is OFF if IGN=OFF & Rear right seat heater switch=ON (again) within T1.

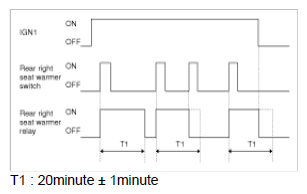

    Fig 2: Rear Right Seat Heater Relay Blinking Pattern
    G06873628Courtesy of HYUNDAI MOTOR CO.

    T1: 20 minute ± 1 minute
