Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the AVN head unit.
(Refer to REPAIR PROCEDURES .
Remove the smart key unit (A) with loosening bolt and nut, then disconnect the connector.
[USA]

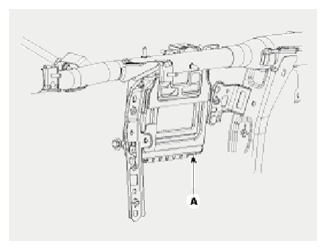

Fig 1: Identifying Smart Key Unit (USA)
Courtesy of HYUNDAI MOTOR AMERICA

[CANADA]

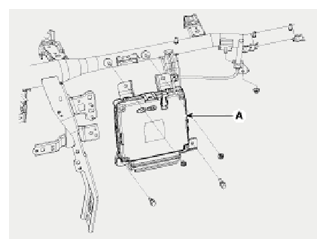

Fig 2: Identifying Smart Key Unit (CANADA, 1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

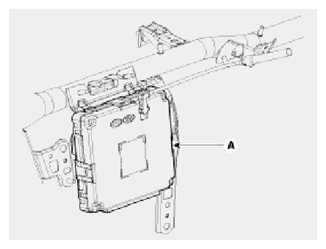

Fig 3: Identifying Smart Key Unit (CANADA, 2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

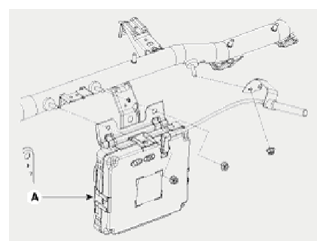

Fig 4: Identifying Smart Key Unit (CANADA, 3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
