Circuit Diagram

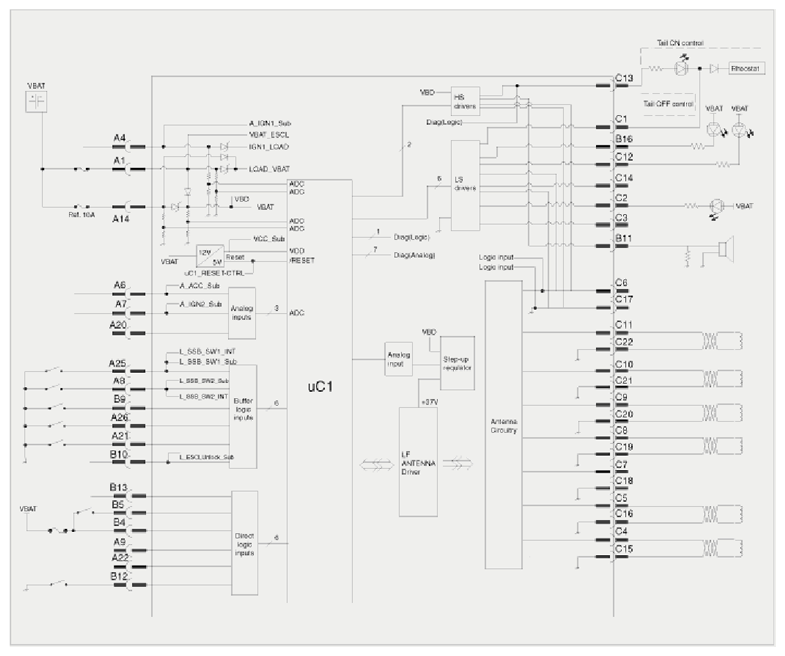

Fig 1: Body Electrical System - Circuit Diagram (1 Of 2)
G09134481Courtesy of HYUNDAI MOTOR AMERICA

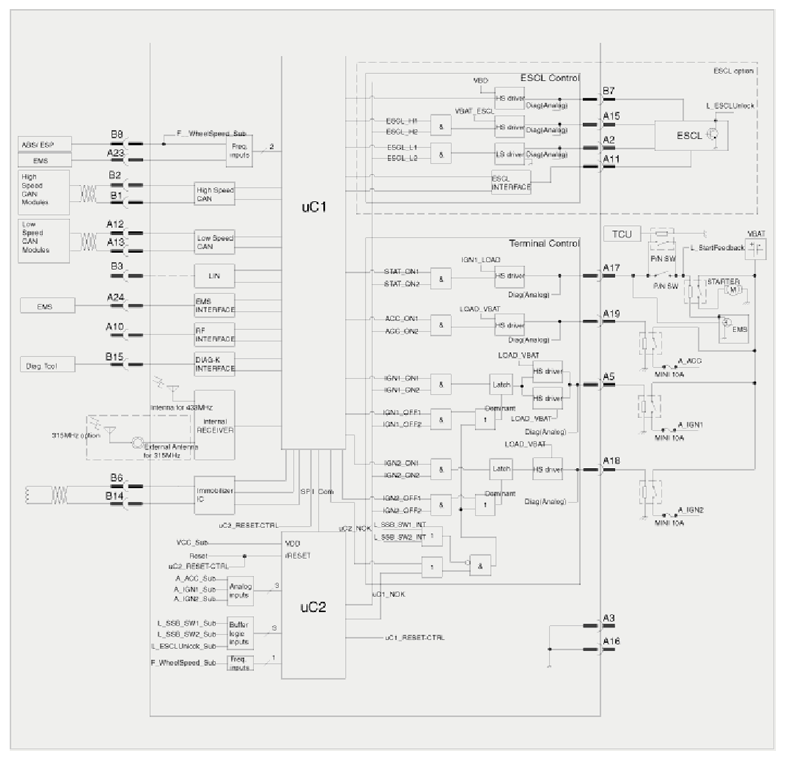

Fig 2: Body Electrical System - Circuit Diagram (2 Of 2)
G09134482Courtesy of HYUNDAI MOTOR AMERICA
