Driver Power Window Switch

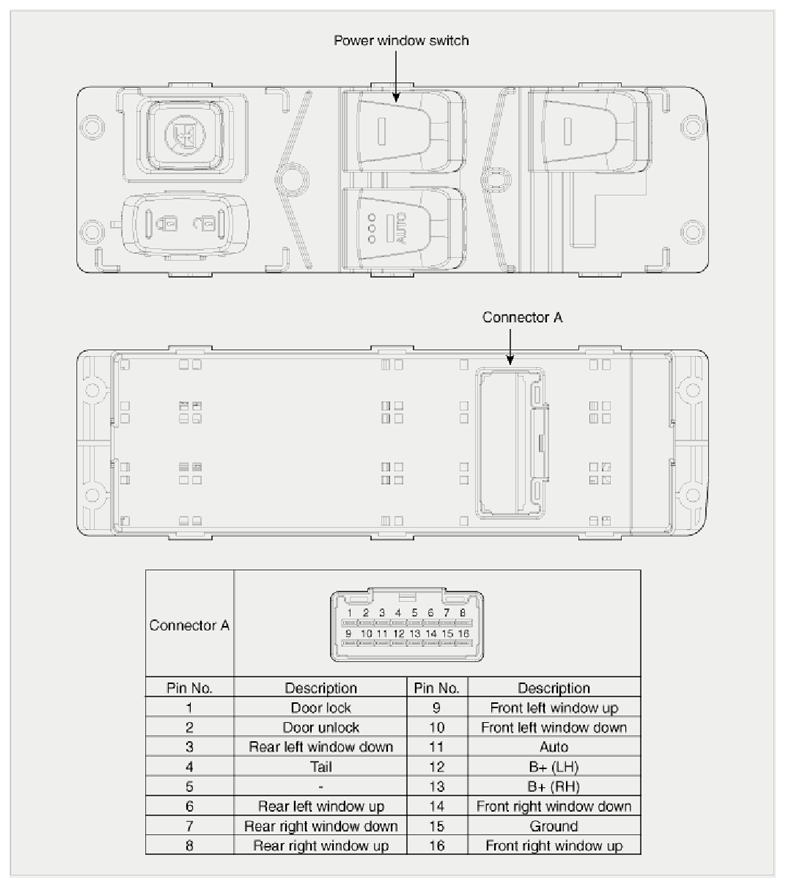

Fig 1: Identifying Power Window Switch And Connector A
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
