Circuit Diagram

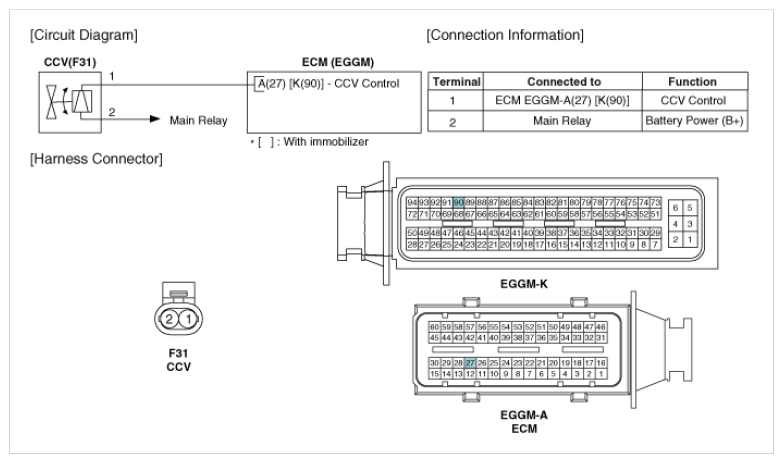

Fig 1: Canister Close Valve - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
