Circuit Diagram: ISG

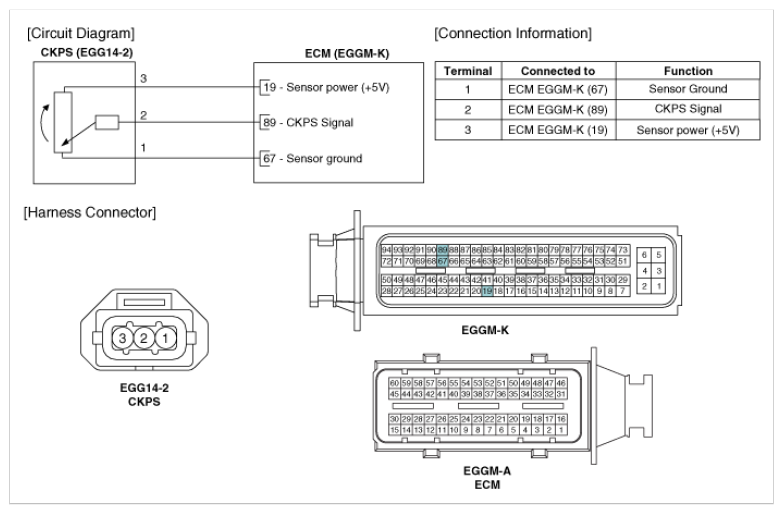

Fig 1: Crankshaft Position Sensor - Circuit Diagram (ISG)
G08807031Courtesy of HYUNDAI MOTOR AMERICA
