Non - ISG

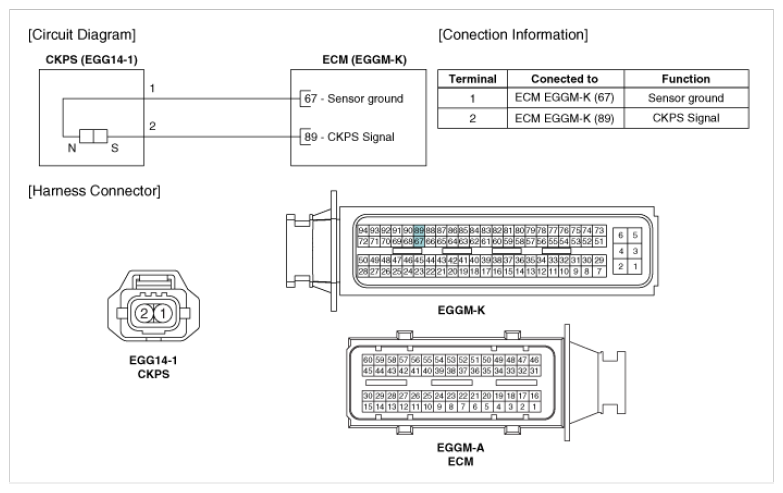

Fig 1: Crankshaft Position Sensor - Circuit Diagram (NON - ISG)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
