Veloster Base, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (2 Of 2) - Non-Turbo
>>
DTC P0461: Fuel Level Sensor 'A' Circuit Range Performance
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

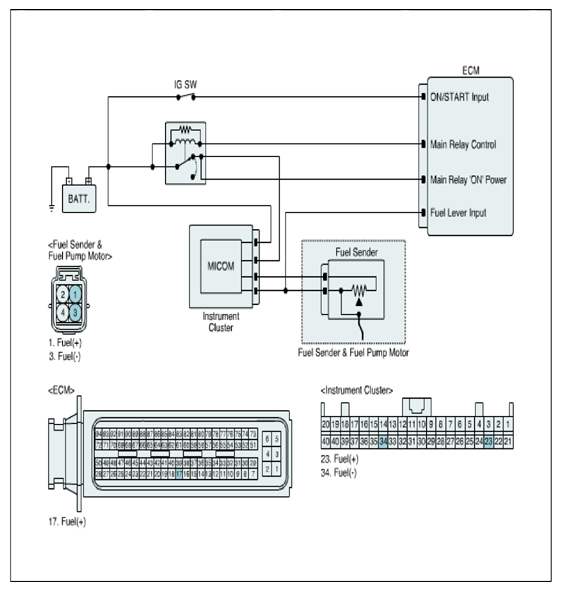

Fig 1: Fuel Level Sensor Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
