Engine Control System Diagnosis (2 Of 2) - Non-Turbo
>>
DTC P0620: Alternator Control Circuit
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

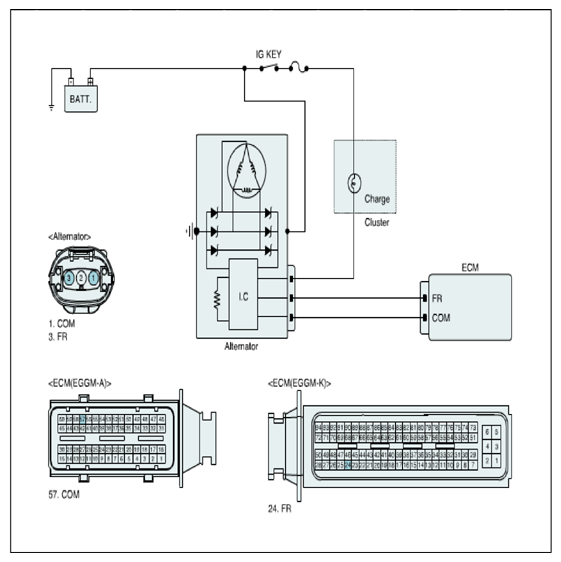

Fig 1: Alternator - Circuit Diagram
