Repair procedures: Inspection

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Check the audio remote control switch (A) for resistance between connector terminals in each switch position.

[LH-AUDIO]

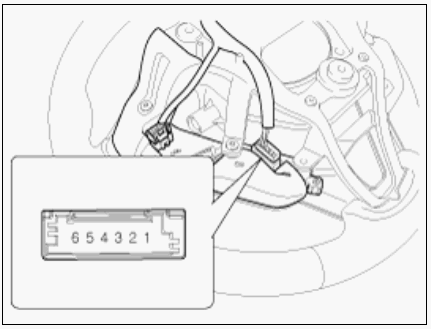

Fig 1: Identifying Audio Remote Control Switch Connector Terminals (LH-Audio)

Courtesy of HYUN

[RH-TRIP]

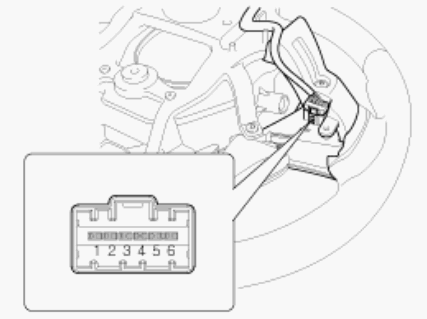

Fig 2: Identifying Audio Remote Control Switch Connector Terminals (LH-Trip)

Courtesy of HYUN

CONNECTOR RESISTANCE REFERENCE (AUDIO)

Switch	Connector terminal	Resistance (±5%)
Seek up	3-5	430 Ω
Seek down	3-5	1.11 kΩ
Mode	3-5	2.11 kΩ
Volume up	3-5	4.61 kΩ
Volume down	3-5	6.81 kΩ

CONNECTOR RESISTANCE REFERENCE (CRUISE)

Switch	Connector terminal	Resistance (±5%)
ON/OFF	3-4	880 Ω
Cancel	3-4	180 Ω
SET -	3-4	330 Ω
SET +	3-4	550 Ω

CONNECTOR RESISTANCE REFERENCE (BLUETOOTH + VOICE)

Switch	Connector terminal	Resistance (±5%)
Voice	3-4	10.71 kΩ
End of call	3-4	18.91 kΩ
Send	3-4	40.91 kΩ

CONNECTOR RESISTANCE REFERENCE (TRIP + RESET)

Switch	Connector terminal	Resistance (±5%)
Trip	3-4	2.54 kΩ
Reset	3-4	5.54 kΩ
