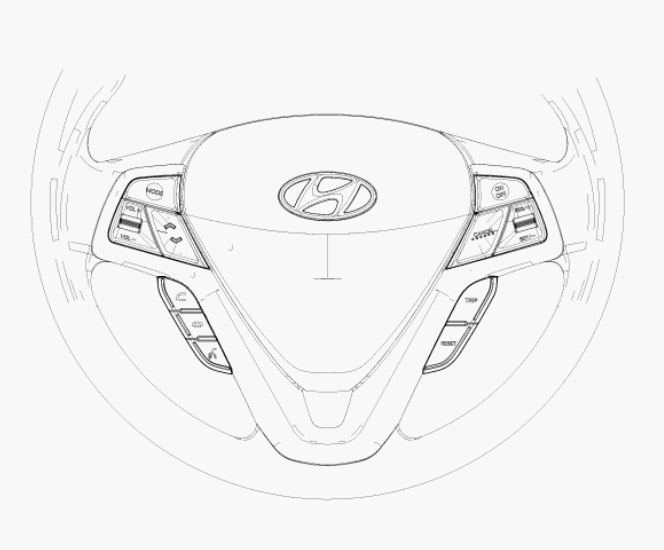

Fig 1: AVN Remote Control Schematic
Courtesy of HYUN

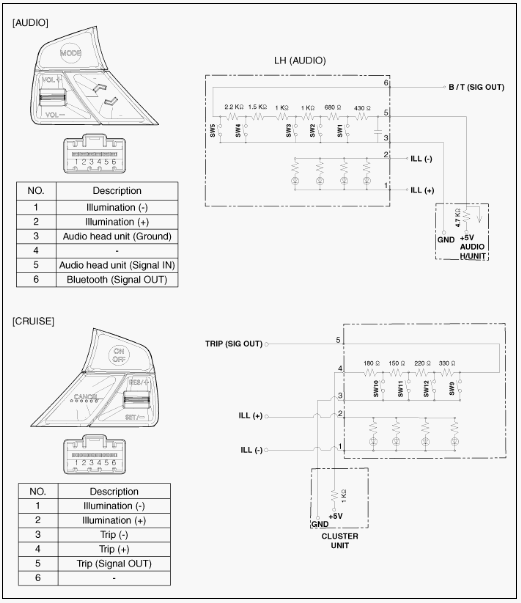

Fig 2: AVN Remote Control - Circuit Diagram (Audio And Cruise)
Courtesy of HYUN

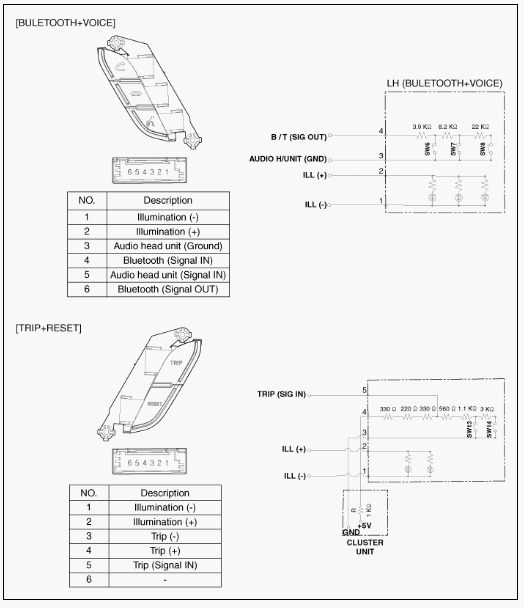

Fig 3: AVN Remote Control - Circuit Diagram (Bluetooth And Voice)
