Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air duct.
(Refer to "AIR CLEANER ")
Remove the battery and the battery tray.
(Refer to "BATTERY ")
Remove the under cover.
Drain the coolant.
(Refer to "COOLANT ")

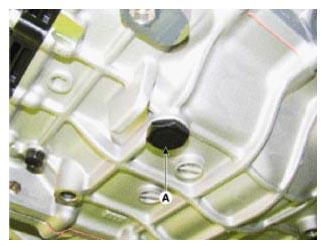

Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Tightening torque:

38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

Fig 1: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: The gasket of the drain plug use new one.

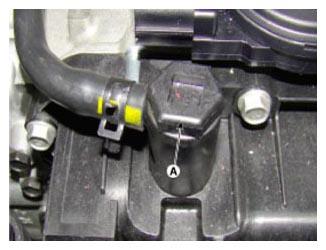

Remove the ATF Injection hole (eyebolt) (A).
Tightening torque:

2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

Fig 2: Identifying ATF Injection Hole (Eyebolt)
Courtesy of HYUNDAI MOTOR AMERICA

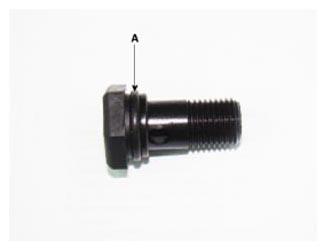

CAUTION: The O-Ring (A) of the eyebolt use new one.

Fig 3: Identifying Eyebolt O-Ring
Courtesy of HYUNDAI MOTOR AMERICA
Remove the valve body cover (A).
Tightening torque:

(A) 13.7~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Fig 4: Identifying Valve Body Cover
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Use new valve body gasket (A).
Fig 5: Identifying Valve Body Gasket
Courtesy of HYUNDAI MOTOR AMERICA

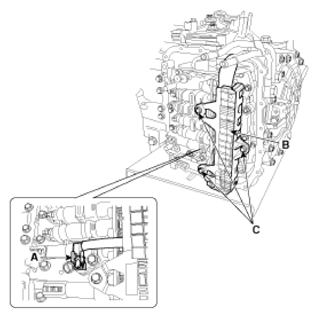

Remove the bolts (C) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 6: Identifying Solenoid Valve Connector, Oil Temperature Sensor Connector And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the solenoid valve support bracket (B) and the valve body mounting bolt (A-1ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 7: Identifying Solenoid Valve Support Bracket And Valve Body Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Remove the torque converter control solenoid valve (A).

Fig 8: Identifying Torque Converter Control Solenoid Valve
Courtesy of HYUNDAI MOTOR AMERICA
