Engine Mounting Support Bracket
- Disconnect the ground cable.
Tightening torque
Ground line bolt:
10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~ 10.1 lb-ft)
- Install the jack to the edge of upper oil pan to support the engine.NOTE: Insert the rubber block between jack and oil pan.

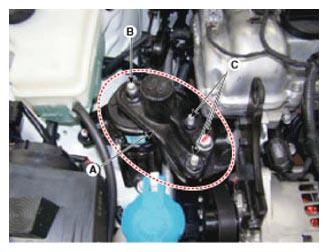

- Remove the engine mounting support bracket (A).
Tightening torque
Nut (B):
63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)
Bolt and nuts (C):
49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
- Install in the reverse order of removal.
