Repair procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for resistance between terminals in each switch position.

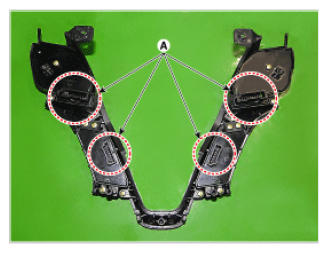

    Fig 1: Identifying Audio Connector Terminal Switches
    G09365986Courtesy of HYUNDAI MOTOR AMERICA
    AUDIO SPECIFICATIONS

    Switch Connector terminal Resistance (± 5%)
    SEEK up 2-7 430 Ω
    SEEK down 2-7 1.11 kΩ
    Mode 2-7 2.11 kΩ
    Mute 2-7 3.11 kΩ
    Volume up 2-7 4.61 kΩ
    Volume down 2-7 6.81 kΩ
    CRUISE + FLEX SPECIFICATIONS

    Switch Connector terminal Resistance (± 5%)
    CANCEL 2-7 180 Ω
    RES + 2-7 330 Ω
    SET - 2-7 550 Ω
    Cruise ON/OFF 2-7 880 Ω
    Limit 2-7 1.44 kΩ
    Flex 2-7 5.56 kΩ
    BLUETOOTH + VOICE SPECIFICATIONS

    Switch Connector terminal Resistance (± 5%)
    Voice 2-5 3.9 kΩ
    End 2-5 12.1 kΩ
    Send 2-5 34.1 kΩ
    TRIP SPECIFICATIONS

    Switch Connector terminal Resistance (± 5%)
    Group 2-5 330 Ω
    Trip 2-5 550 Ω
    Select/Reset 2-5 880 Ω
