Repair Procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. After loosening the mounting screws, then remove the console armrest cover (A).

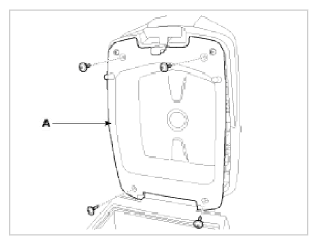

    Fig 1: Identifying Console Armrest Cover And Mounting Screws
    G09365652Courtesy of HYUNDAI MOTOR AMERICA
  2. After loosening the mounting screws, then remove the console armrest (A).

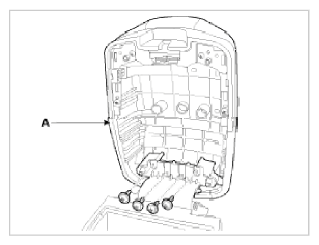

    Fig 2: Identifying Console Armrest And Mounting Screws
    G09365653Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.

    Information

    • Replace any damaged clips.
