Liftgate Switch

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for continuity between the Liftgate latch terminals.

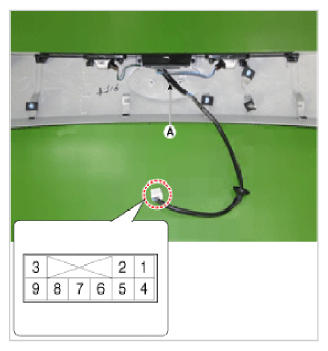

    Fig 1: Identifying Liftgate Latch Terminals
    G09366109Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch

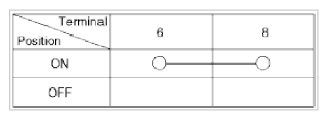

    Fig 2: Identifying Liftgate Latch Terminals Continuity Chart
    G09366110Courtesy of HYUNDAI MOTOR AMERICA
