Monitor GDS Data

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. IG KEY "ON" & Engine "OFF".
  2. Erase DTC after connecting GDS.
  3. Check Smart key status in "Vehicle S/W Management"  , if DTC is retrieved.

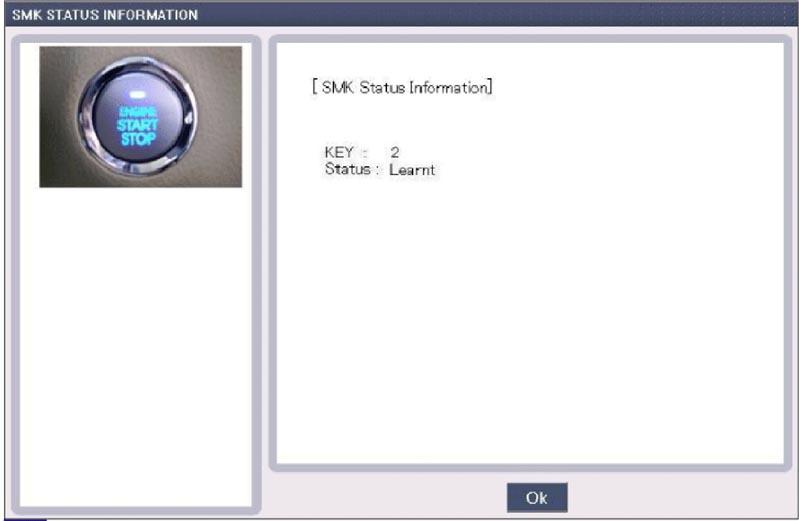

    Fig 1: Display - SMK Status Information Screen
    G09370131Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the Smart key PCM learnt status?

    YES

    • Fault is intermittent caused by poor contact in Smart key PCM and/or PCM's connector or was repaired and Smart key PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
