Head Lamp Washer By Front Wiper Washer Control

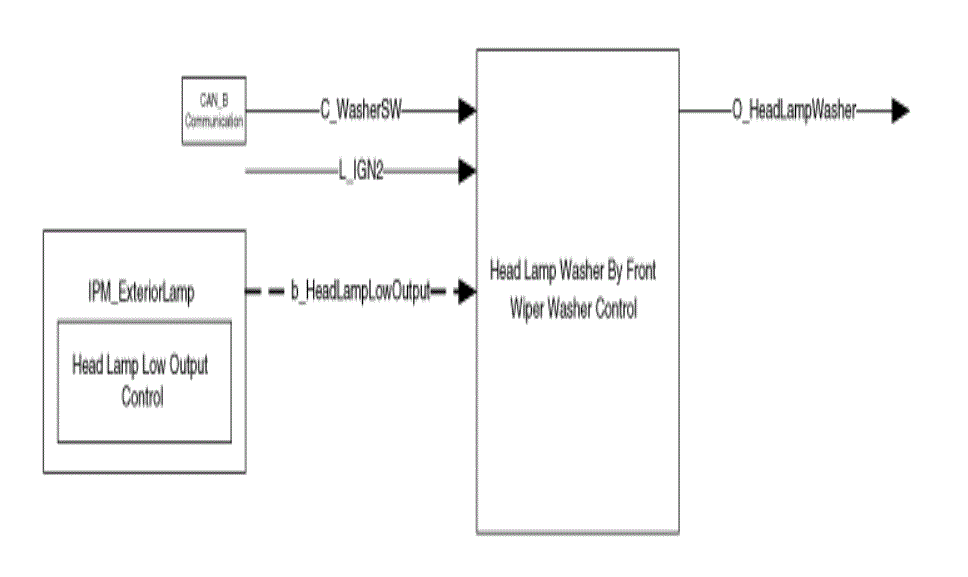

Fig 1: Head Lamp Washer By Front Wiper Washer Control System Function Diagram
G08814257Courtesy of HYUNDAI MOTOR AMERICA
Function Characteristics Name
Signal Label Spec. Designation
Input Logic L_IGN2 Ignition 2 Signal
CAN_B Communication C_WasherSW Wiper Washer Switch from MFSW
Internal b_HeadLampLowOutput Head Lamp Low Output
Output Logic O_HeadLampWasher Head Lamp Washer Output
