AVN (A/V & Navigation) Head Unit Connector

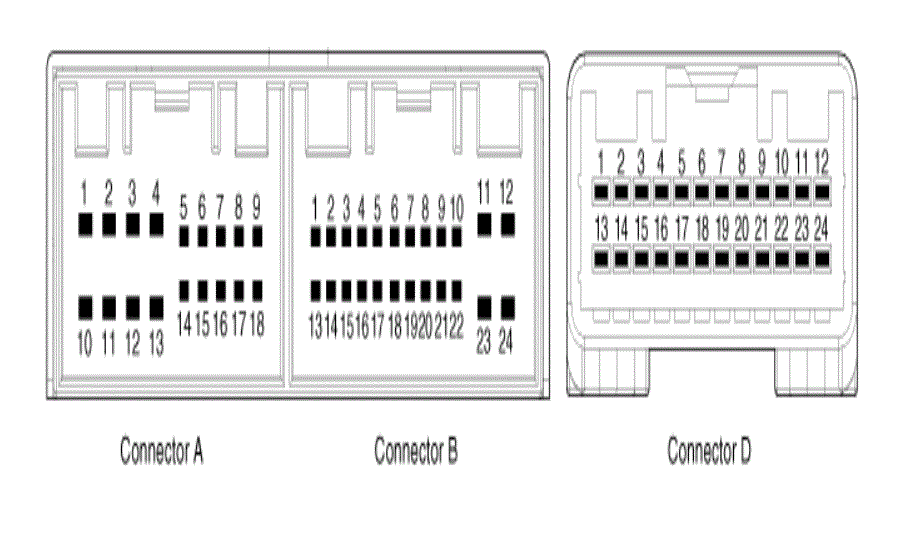

Fig 1: Identifying AVN (A/V & Navigation) Head Unit Connector Terminals
G08810932Courtesy of HYUNDAI MOTOR AMERICA
Pin No. Description Comments
A1 - -
A2 PARKING_V_VIDEO Rear View Camera Video Signal
A3 PARKING_V_GND Rear View Camera Video Ground
A4 R/C_SHIELD GND Rear View Camera Video Shield Ground
A5 SPDIF GND SPDIF DIGITAL SIGNAL GND
A6 SPDIF + SPDIF DIGITAL SIGNAL POSITIVE
A7 - ALT Signal
A8 ILL+ Rheostat from vehicle +
A9 R_POSITION R Position (TGS) signal from Vehicle
A10 - -
A11 R/C POWER Rear View Camera Power
A12 NAVI_VOICE- Navigation Voice channel -
A13 NAVI_VOICE+ Navigation Voice channel +
A14 PGS/RC PGS or AVM == GND/RC == No connection
A15 SPDIF - SPDIF DIGITAL SIGNAL NEGATIVE
A16 DR KEY UNLOCK Door Unlock Signal
A17 ILL- Rheostat from vehicle -
A18 REMOTE ANT Remote supply for motorized antenna
B1 MM CAN HIGH MM CAN-H I/F
B2 NC (TEL_MUTE) TELEPHONE MUTE
B3 NC (TEMP) Temp signal from vehicle
B4 - STEEL WHEEL REMOTE CONTROL INPUT
B5 - REAR REMOTE CONTROL INPUT
B6 - -
B7 AUX_VIDEO AUX Video Signal
B8 AUX_R_IN AUX ST SOUND R-CH INPUT
B9 AUX GND AUX ST SOUND GND
B10 MIC+ BLUETOOTH H/F VOICE INPUT PIN
B11 ACC ACC
B12 B+ Fused battery power supply (10A)
B13 MM CAN LOW CAN-L I/F
B14 AUTO LIGHT Automatic Light Signal from Vehicle
B15 P_POSITION P Position (TGS) signal from Vehicle
B16 SPEED Speed signal from vehicle
B17 - REMOTE CONTROL GND
B18 - -
B19 AUX_VIDEO_GND AUX Video Signal GND
B20 AUX_DETECT AUX CONNECTION DETECT
B21 AUX_L_IN AUX ST SOUND L-CH INPUT
B22 MIC- BLUETOOTH H/F VOICE INPUT GND
B23 POWER GND Ground of Power Supply Line
B24 POWER GND Ground of Power Supply Line
D1 - -
D2 - -
D3 - -
D4 - -
D5 - -
D6 - -
D7 - -
D8 - -
D9 LVDS_PDN Communication between H/UNIT and Monitor
D10 - -
D11 - -
D12 - -
D13 LVDS_LOCK Communication between H/UNIT and Monitor
D14 BL_ON Communication between H/UNIT and Monitor
D15 RS485_RX+ Communication between H/UNIT and Monitor
D16 RS485_RX- Communication between H/UNIT and Monitor
D17 GND Ground of Power Supply Line
D18 RS485_TX- Communication between H/UNIT and Monitor
D19 RS485_TX+ Communication between H/UNIT and Monitor
D20 - -
D21 - -
D22 - -
D23 - -
D24 - -

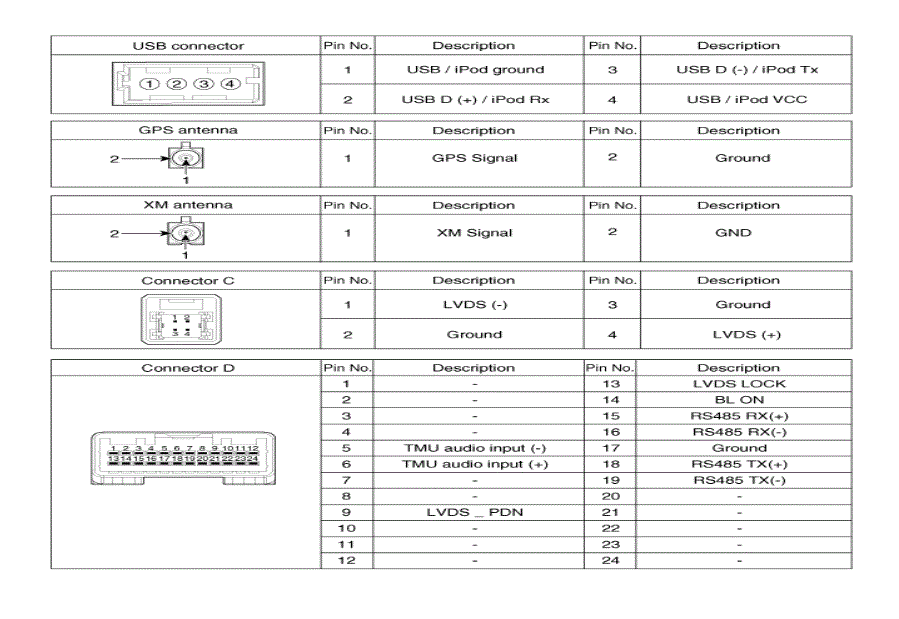

Fig 2: AVN (A/V & Navigation) Head Unit Connector Description Chart
G08810933Courtesy of HYUNDAI MOTOR AMERICA

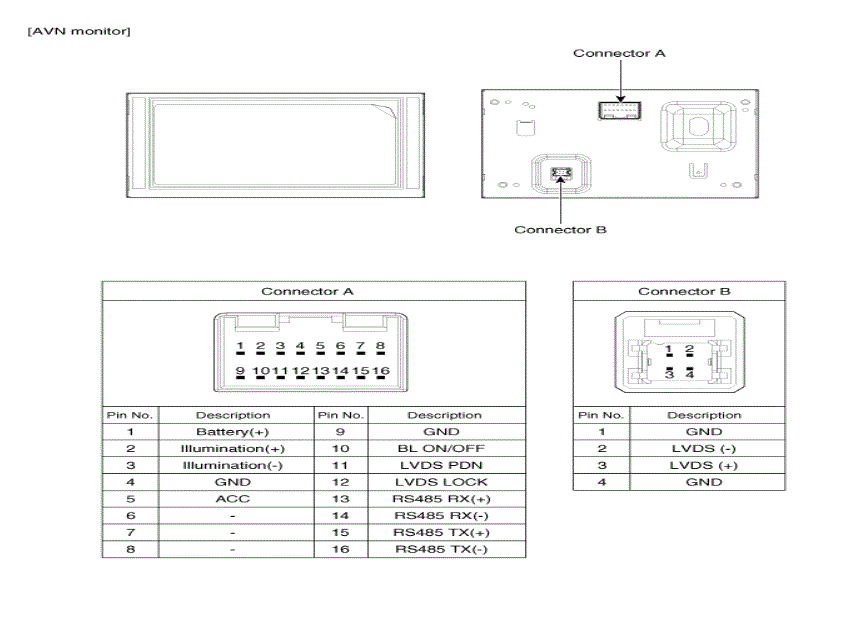

Fig 3: Identifying AVN (A/V & Navigation) Head Unit Connector (AVN Monitor)
G08810934Courtesy of HYUNDAI MOTOR AMERICA
