ABS Control Module Connector End View (E02)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ABS Control Module Connector End View (E02)

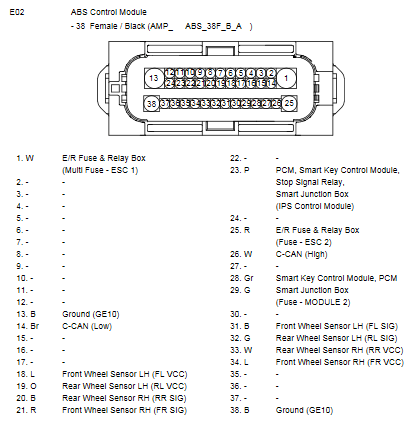

Fig 1: ABS Control Module Connector End View (E02)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
