Multifunction Switch (Remote Control) Connector End View (M01-R)

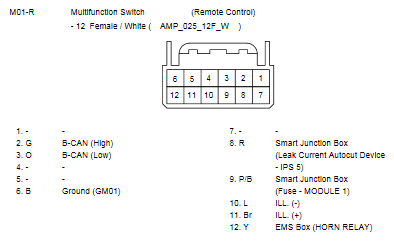

Fig 1: Multifunction Switch (Remote Control) Connector End View (M01-R)
G10775735Courtesy of HYUNDAI MOTOR AMERICA
