A/C Control Module (Auto) Connector End View (M03-B)

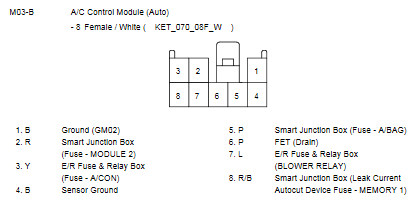

Fig 1: A/C Control Module (Auto) Connector End View (M03-B)
G10775737Courtesy of HYUNDAI MOTOR AMERICA
