Immobilizer Module (W/O Smart Key) Connector End View (M11)

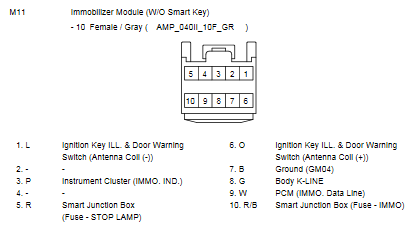

Fig 1: Immobilizer Module (W/O Smart Key) Connector End View (M11)
G10775747Courtesy of HYUNDAI MOTOR AMERICA
