Repair Procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to "FLOOR CONSOLE ")

  4. Loosen the screw (A) and then remove the rear air vent duct (B).
    Fig 1: Identifying Rear Air Vent Duct And Screw
    G08810261Courtesy of HYUNDAI MOTOR AMERICA
  5. Pull up the lock, of the SRSCM connector, the disconnect the connector (A and B).

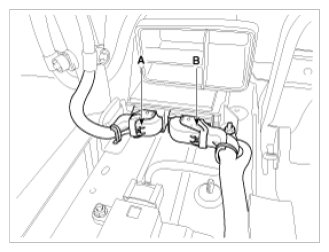

    Fig 2: Identifying SRSCM Connectors
    G08810262Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the SRSCM mounting nuts (3 EA) from the SRSCM, then remove the SRSCM.
