Diagnostic Circuit Diagram

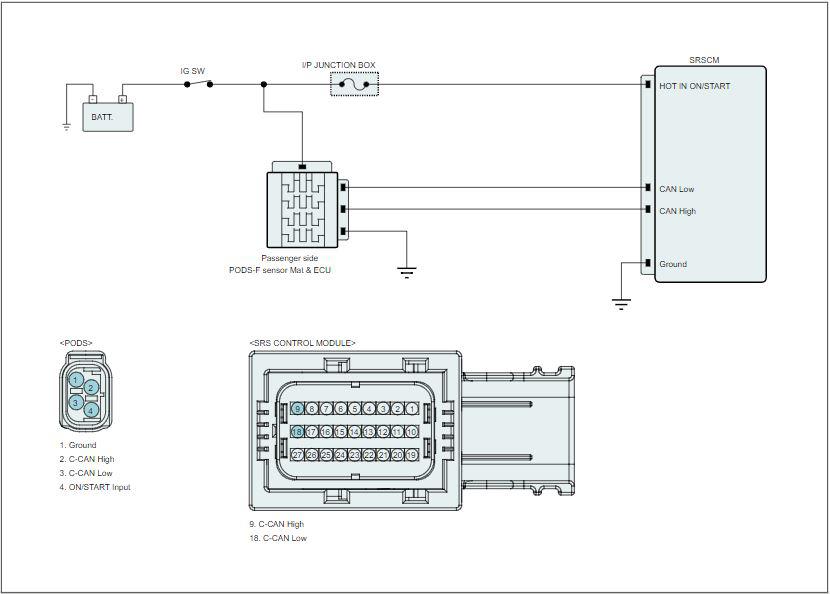

Fig 1: Passenger Side PODS-F Sensor Mat And ECU Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
