Signal Waveform & Data

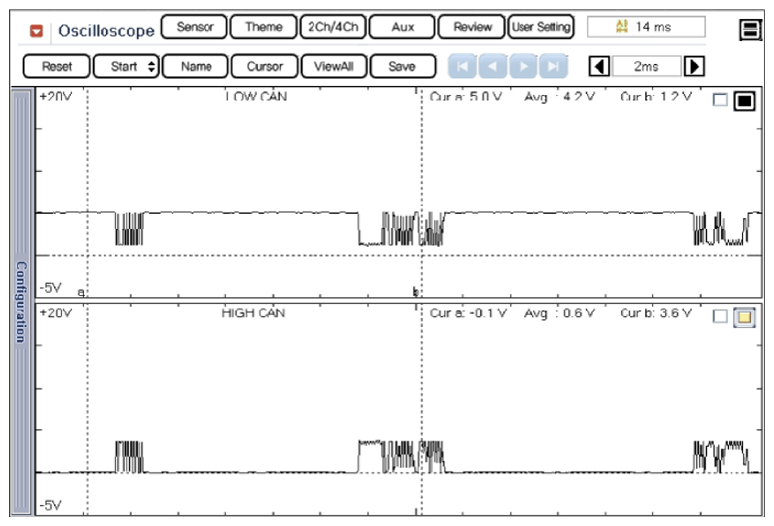

Fig 1: CAN Low/High Signal Waveform
G08815864Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: CAN BUS Voltage Level (Low Speed CAN)
G08815865Courtesy of HYUNDAI MOTOR AMERICA
