Signal Waveform & Data

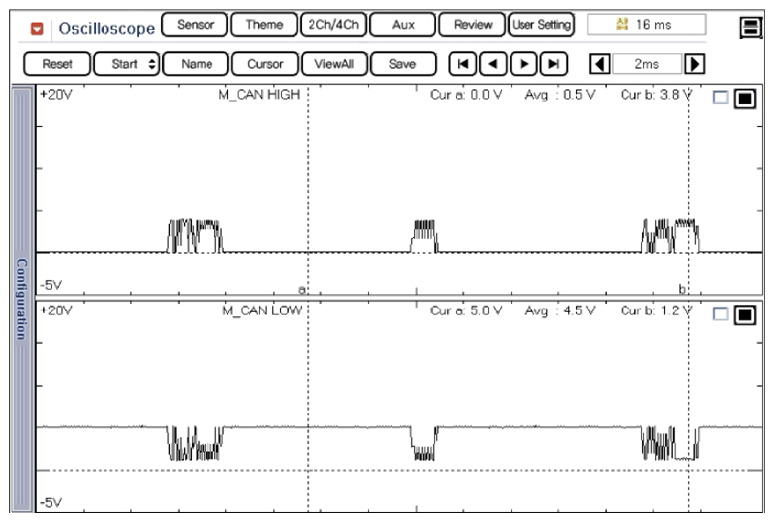

Fig 1: MM CAN Low/High Signal Waveform
G08815877Courtesy of HYUNDAI MOTOR AMERICA

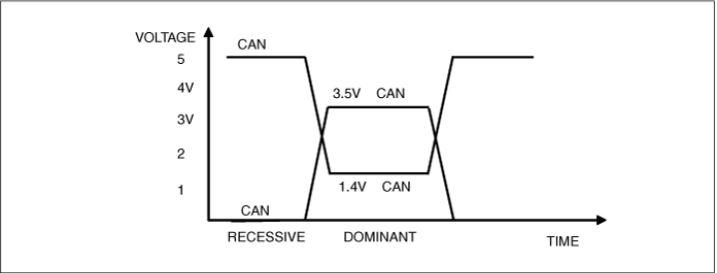

Fig 2: MM CAN BUS Voltage Level (Low Speed CAN)
G08815878Courtesy of HYUNDAI MOTOR AMERICA
