Signal Waveform & Data

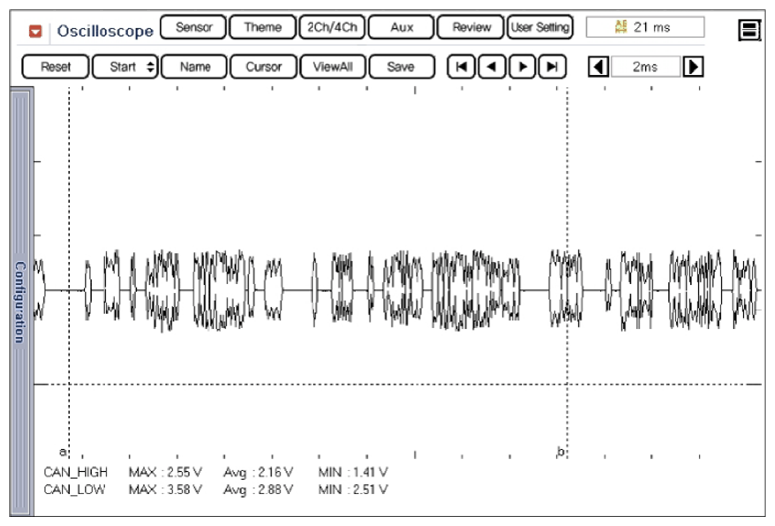

Fig 1: Display - C_CAN Low/High Signal Waveform
G08816035Courtesy of HYUNDAI MOTOR AMERICA

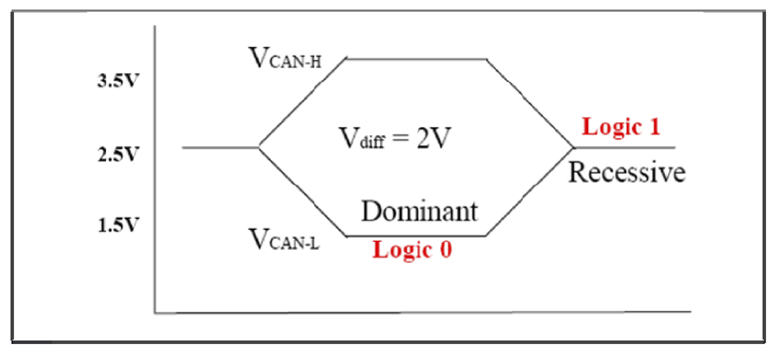

Fig 2: Display - C_CAN Bus Voltage Level (High Speed CAN)
G08816036Courtesy of HYUNDAI MOTOR AMERICA
