Removal and Installation

Disconnect the battery negative terminal.
Tightening torque: 4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft)
Remove the steering wheel. (Refer to Steering System - "STEERING WHEEL ")

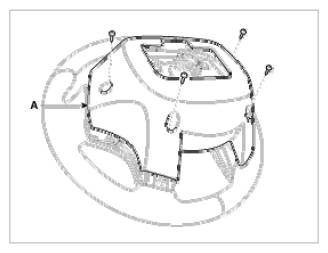

Loosen the screws and then remove the cover (A).

Fig 1: Identifying Steering Wheel Cover
Courtesy of HYUNDAI MOTOR AMERICA

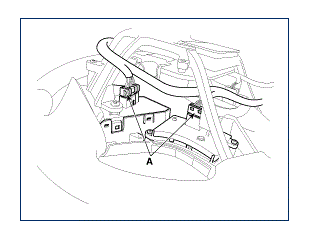

Disconnect the steering wheel remote control switch connectors (A).

Fig 2: Identifying Steering Wheel Remote Control Switch Connectors
Courtesy of HYUNDAI MOTOR AMERICA

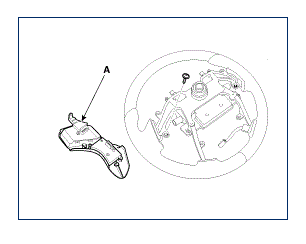

Loosen the screw and then remove the steering wheel remote control switch assembly (A), being cautions of fixed clip.

Fig 3: Identifying Steering Wheel Remote Control Switch Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the smart cruise control switch (A).

Fig 4: Identifying Smart Cruise Control Switch
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
