Removal and Installation

Disconnect the negative battery cable.
Disconnect the driver air bag module.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to "STEERING WHEEL ")

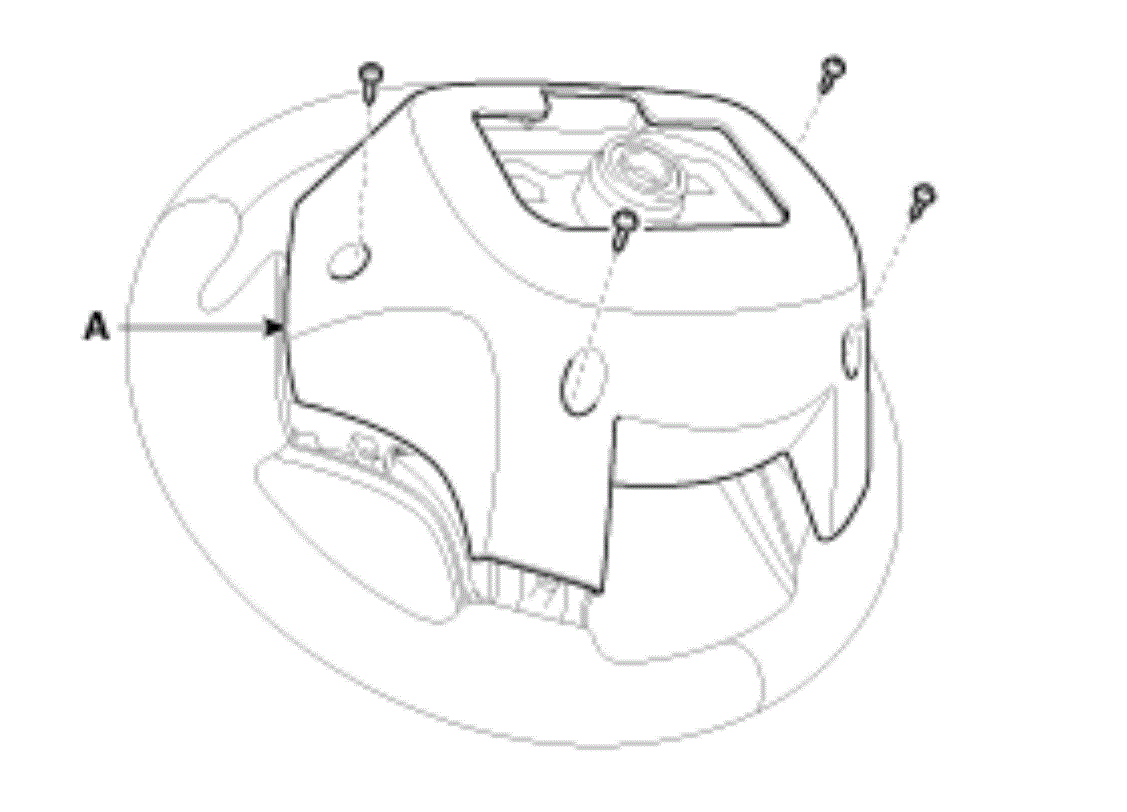

Loosen the screws and then remove the cover (A).

Fig 1: Identifying Steering System Cover Screws
Courtesy of HYUNDAI MOTOR AMERICA

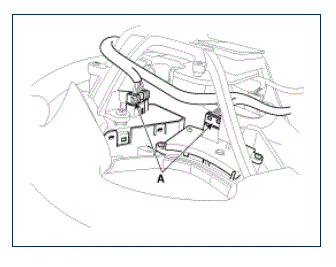

Disconnect the steering wheel remote control switch connectors (A).

Fig 2: Identifying Steering Wheel Remote Control Switch Connectors
Courtesy of HYUNDAI MOTOR AMERICA

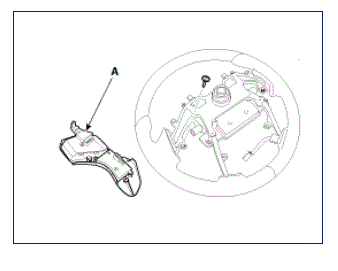

Loosen the screw and then remove the steering wheel remote control switch assembly (A), being cautious of fixed clip.

Fig 3: Identifying Steering Wheel Remote Control Switch Assembly
Courtesy of HYUNDAI MOTOR AMERICA

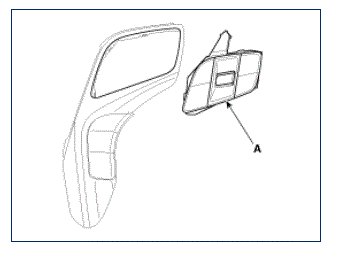

Remove the smart cruise control switch (A).

Fig 4: Identifying Smart Cruise Control Switch
Courtesy of HYUNDAI MOTOR AMERICA
Installation is reverse order of removal.
