Repair Procedures: Installation

Fix the band cable of FEM joint connector (B) and connect the smart cruise control unit connector (A).

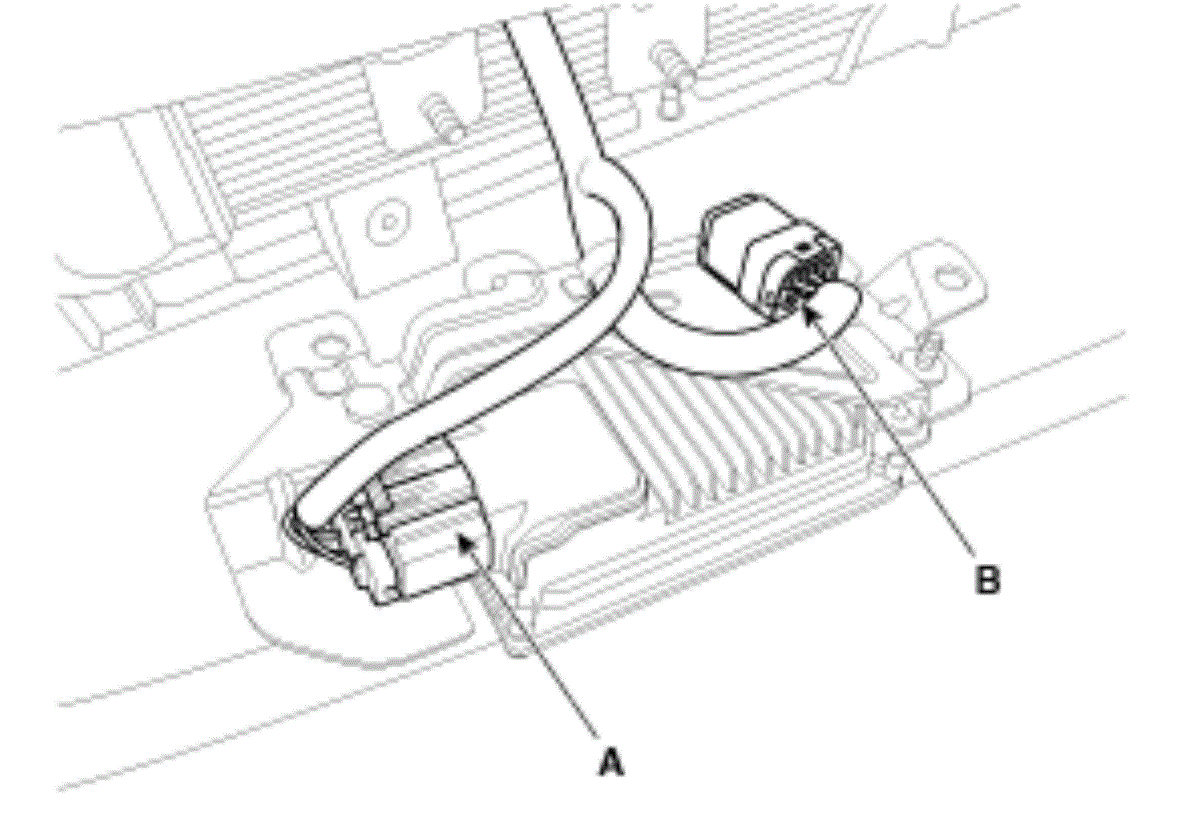

Fig 1: Identifying FEM Joint Connector And Smart Cruise Control Unit Connector
Courtesy of HYUNDAI MOTOR AMERICA
Install the smart cruise control unit assembly (A) on the vehicle.
Tightening torque

Bolts:

7.8 ~ 11.8 N.m (0.8 ~ 1.2kgf.m, 5.8 ~ 8.7lb-ft)

Nuts:

6.9 ~ 10.8N.m (0.7 ~ 1.1kgf.m, 5.1 ~ 8.0lb-ft)

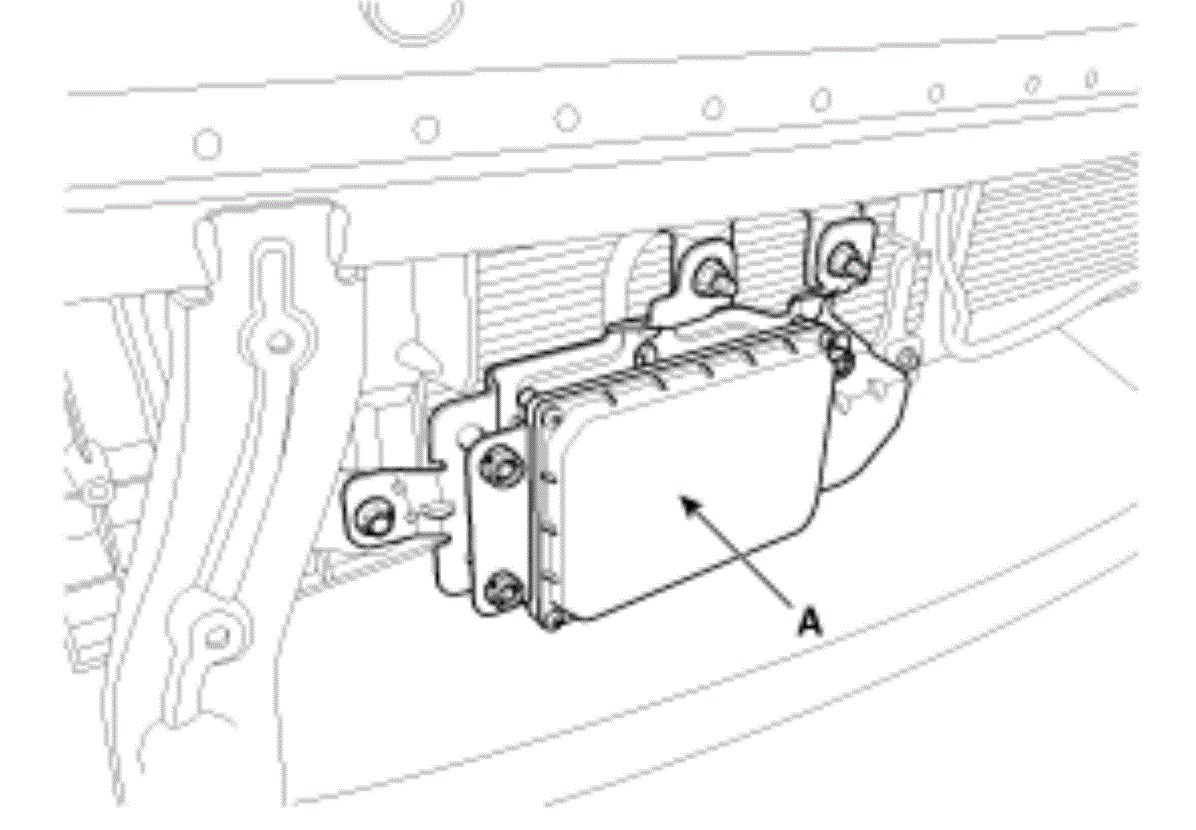

Fig 2: Identifying Smart Cruise Control Unit Assembly
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When installing the sensor, align the direction of sensor with the vehicle motion vector and adjust the upside of sensor horizontally using level meter (A).

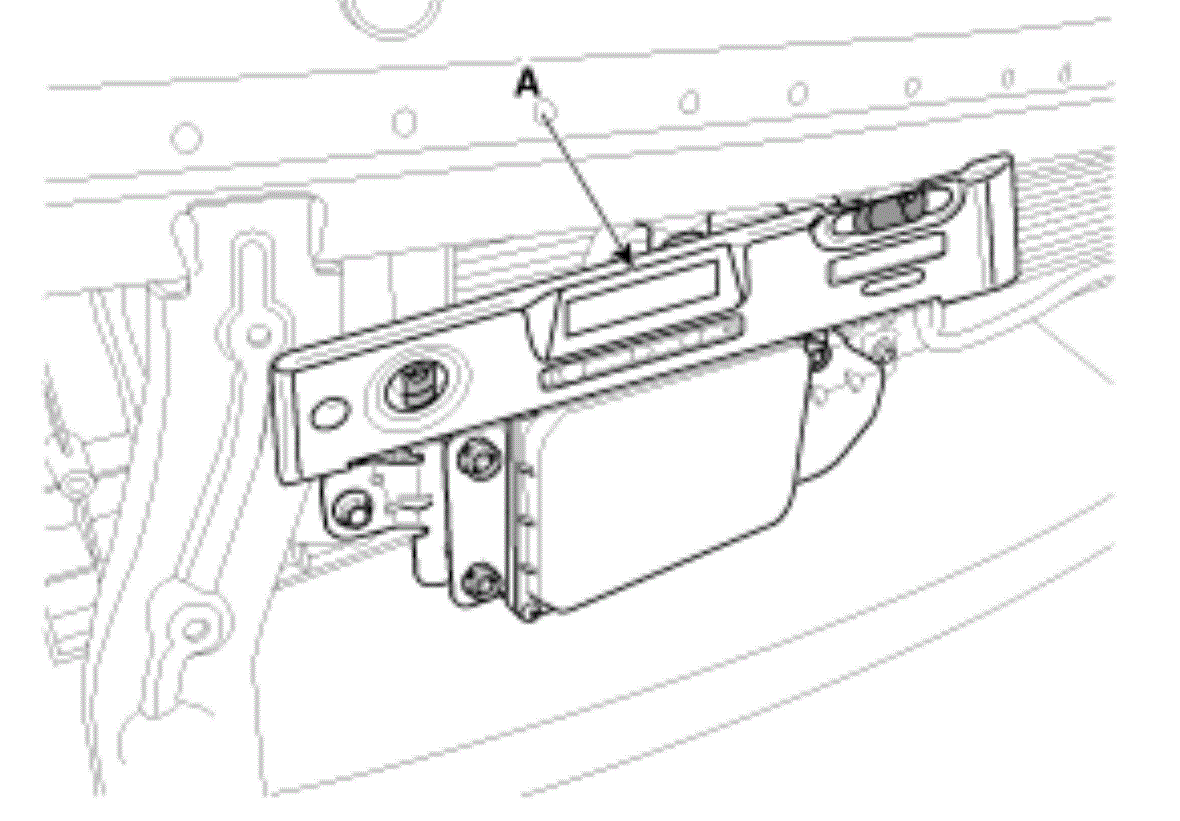

Fig 3: Identifying Level Meter
Courtesy of HYUNDAI MOTOR AMERICA
Align the smart cruise control sensor.
(Refer to "SMART CRUISE CONTROL (SCC) SENSOR ALIGNMENT ")
Install the bumper.
(Refer to "FRONT BUMPER COVER ")
