Repair Procedures: Removal

  1. Remove the center fascia tray.

    (Refer to "FLOOR CONSOLE ASSEMBLY ")

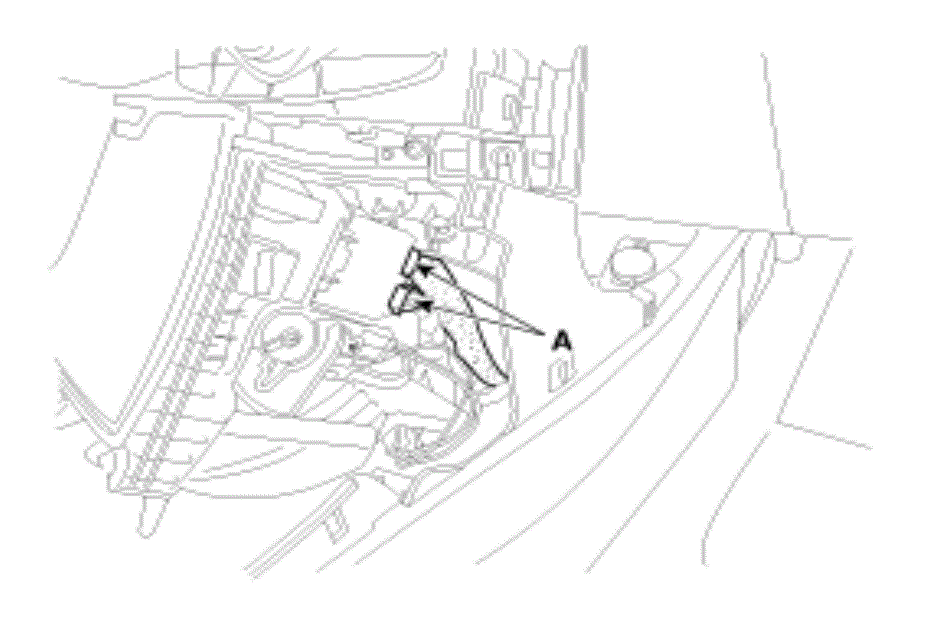

  2. Disconnect the connectors (A) from center fascia tray.
    Fig 1: Identifying Center Fascia Tray Connectors
    G08810943Courtesy of HYUNDAI MOTOR AMERICA

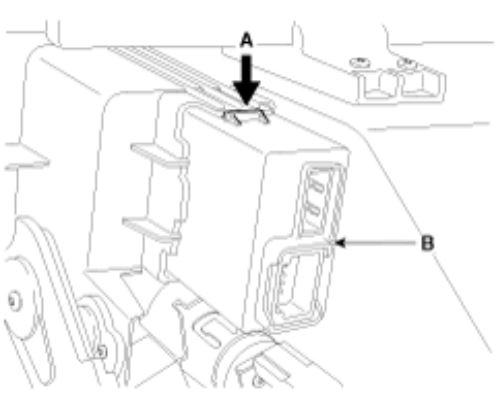

  3. Remove the multimedia jack (B) from the console upper cover after releasing the fixed hooks (A).
    Fig 2: Releasing Multimedia Jack Fixed Hooks
    G08810944Courtesy of HYUNDAI MOTOR AMERICA
