Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center console.

    (Refer to "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the interior 2 antenna (A) after loosening the mounting nuts (2EA).

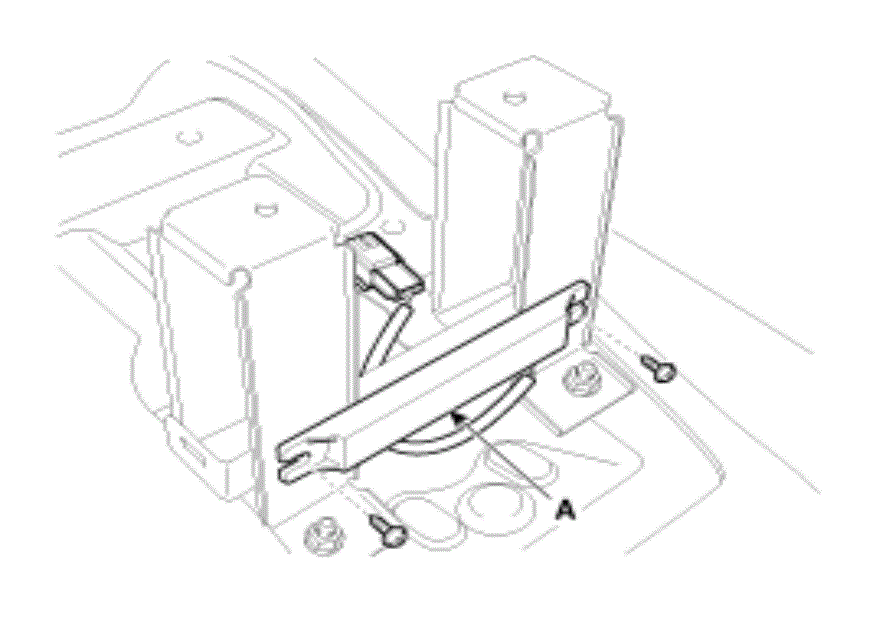

    Fig 1: Identifying Interior 2 Antenna
    G08814191Courtesy of HYUNDAI MOTOR AMERICA
