Repair procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape and apply protective tape around the related parts to prevent damage.
Take care not to scratch the body surface.
Put on gloves to protect your hands.

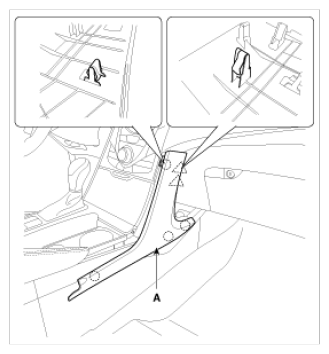

Using a screwdriver or remover, remove the center facia side garnish (A).

Fig 1: Identifying Center Facia Side Garnish
Courtesy of HYUNDAI MOTOR AMERICA

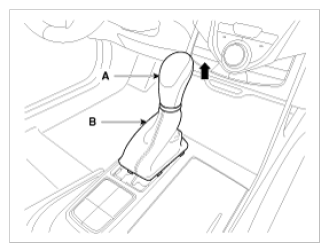

Remove the gear boots (B) and gear knob (A).

Fig 2: Removing Gear Boots And Knob
Courtesy of HYUNDAI MOTOR AMERICA

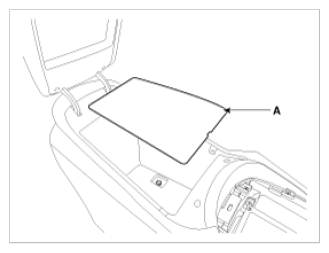

Using a screwdriver or remover, remove the console upper tray complete (A).

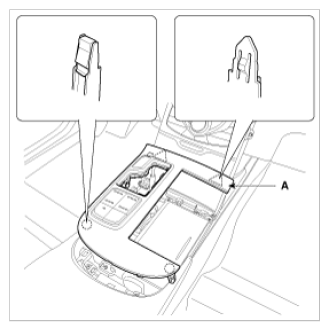

Fig 3: Identifying Console Upper Tray
Courtesy of HYUNDAI MOTOR AMERICA

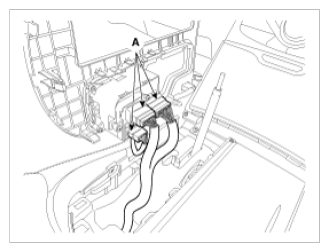

Disconnect the connectors (A).

Fig 4: Identifying Console Upper Tray Connectors
Courtesy of HYUNDAI MOTOR AMERICA

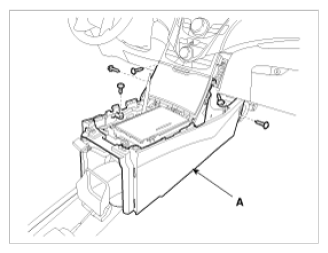

Remove the console tray (A).

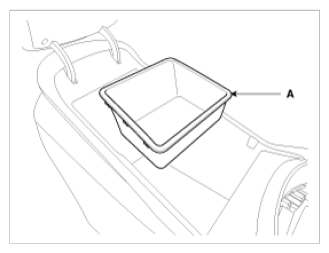

Fig 5: Identifying Console Tray
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console tray met (A).

Fig 6: Identifying Console Tray Met
Courtesy of HYUNDAI MOTOR AMERICA

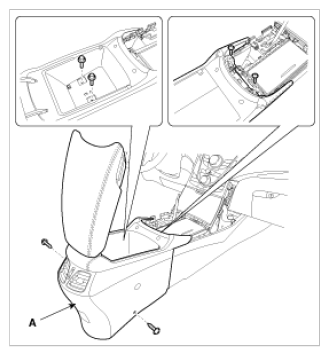

After loosening the mounting screws and bolts then remove the console rear complete assembly (A).

Fig 7: Removing Complete Rear Console Assembly With Mounting Screws And Bolts
Courtesy of HYUNDAI MOTOR AMERICA

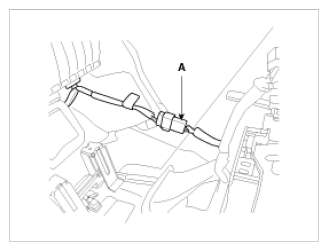

Disconnect the connector (A).

Fig 8: Disconnecting Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the console extension cover (A).

Fig 9: Identifying Console Extension Cover
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the console front complete assembly (A).
NOTE:
- Shift lever to "N" position when remove the console front complete assembly.
Fig 10: Removing Console Front Complete Assembly
Courtesy of HYUNDAI MOTOR AMERICA

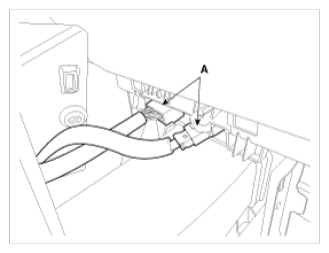

Disconnect the connectors (A).

Fig 11: Disconnecting Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damage clips.
